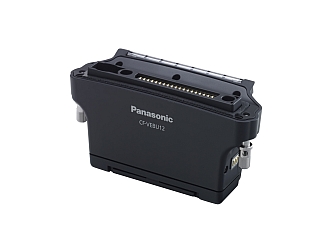

Panasonic CF-U1 Mini Port Replicators Part No CF-VEBU12U and CF-VEBU13U
Mini Port Replicators for Toughbook CF-U1
| Model Number | Description | Price* |
| CF-VEBU12U | Panasonic Mini Port Replicator (Smart Card/LAN/Serial) for Toughbook CF-U1 | £236.25 |
| CF-VEBU13U | Panasonic Mini Port Replicator (LAN/Serial) for Toughbook CF-U1 | £205.70 |
*Please note all prices shown are exclusive of VAT
| Item | Description |
| Expansion Bus Connector | 19-pin |
| LAN Port | 100BASE-TX / 10BASE-T (RJ-45) |
| Serial Port | RS232C × 1 (D-sub 9-pin) |
| Smart Card Slot | CF-VEBU12U: × 1 (Contact type); CF-VEBU13U: — |
|
Physical Dimensions (W × H × D) |
Approx. 141 mm × 72 mm × 50 mm {Approx. 5.6" × 2.8" × 2.0"} |
| Weight | CF-VEBU12U: Approx. 250 g {Approx. 0.55 lb.}; CF-VEBU13U: Approx. 225 g {Approx. 0.5 lb.} |
| Environment (In use) |
Temperature: 5 °C to 35 °C {Approx. 41°F to 95°F} Humidity: 30 % RH to 80 % RH (No condensation) |
These Panasonic Mini port replicators are compatible with the following Toughbooks:
Panasonic Toughbook CF-U1 Mk1
Panasonic Toughbook CF-U1 Mk2/2.6
