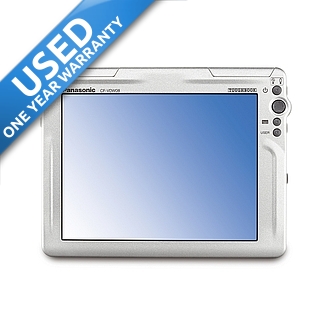

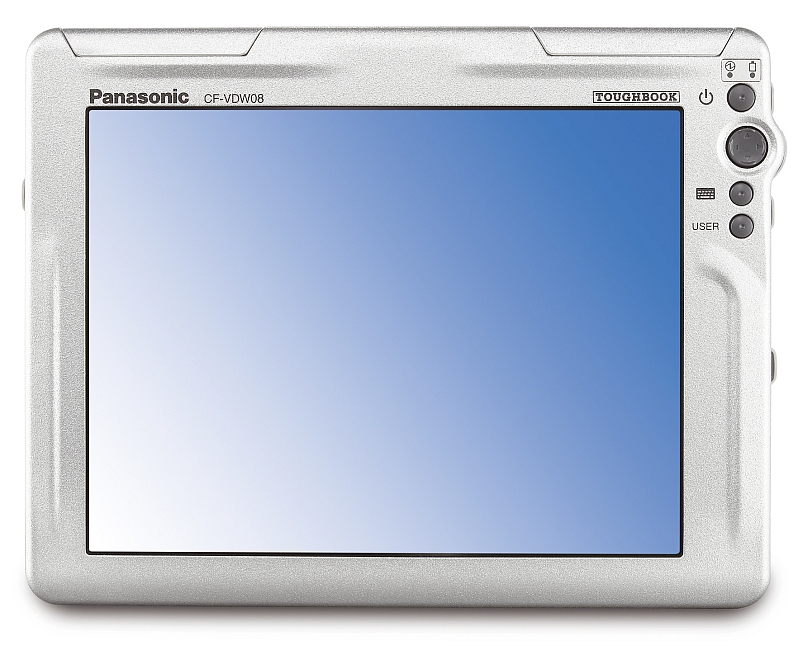

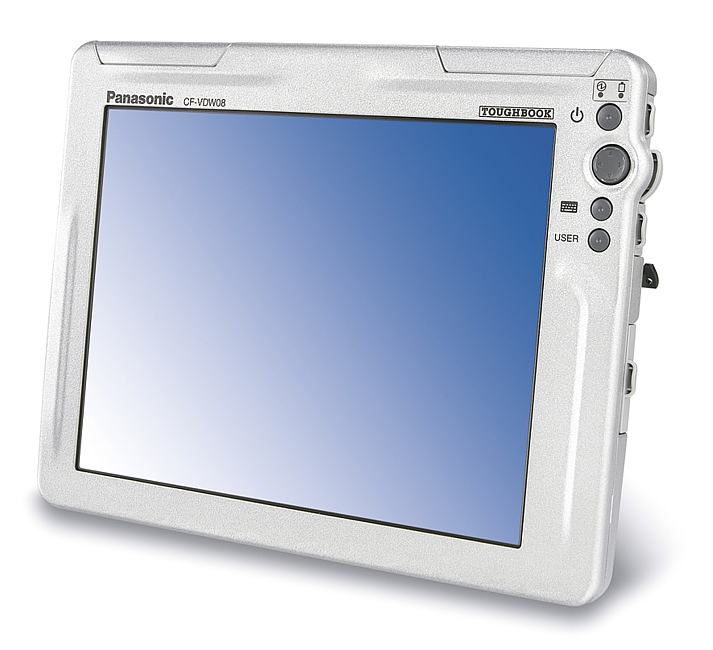

Refurbished Panasonic Toughbook CF-08
Wireless Touchscreen Display
| CF-08 Models and Prices | CF-08 Accessories | CF-08 Specification |
The Toughbook CF-08 is a lightweight, ultra portable wireless display that can be used for peer to peer communications or it can be integrated into a multi client WLAN system – for instance, in large buildings or extensive factory sites.
The 10.4 inch XGA touchscreen is characterised by its extreme clarity and its pin sharp display thanks to the excellent contrast ratio. With a brightness of 460 cd/m2, the display is read easily, even in bright daylight conditions.
As a result of its impact-resistant magnesium casing, the robust display is protected against drops from up to 4 ft onto a concrete surface. A special seal also protects all ports against dust and water penetration. Even disinfectants can’t harm the CF-08 which is vital for use in a medical environment.

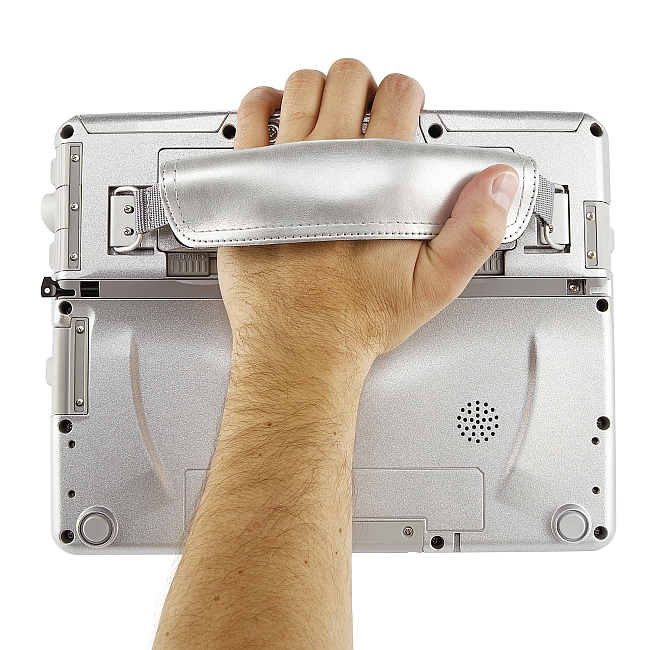

Due to its hand strap the 1.2 kg lightweight display is extremely easy to handle, and its high-performance rechargeable battery can last for up to 14 hours. The lack of internal storage is intentional – all data accessed via the CF-08 is transmitted from the host system for processing and storage. In this way, highly sensitive data is protected against loss or unauthorised access.
External devices can be connected via an integrated Bluetooth® module. For desktop applications, the Toughbook can be mounted in a docking station, available as an optional accessory.
| Model Number | Description | Price* |
| CF-08TX1BX1E | Grade A Refurbished Panasonic Toughbook CF-08 Wireless Display. 1-Year Limited RTB Warranty | £349.00 |
All refurbished Toughbooks are supplied with a 12-month limited RTB warranty and have been thoroughly checked and tested including the hard drive and battery to ensure that you receive a Toughbook in flawless working condition. 'Grade A' indicates light signs of use with only minor cosmetic marks on the casing and a clean unmarked screen.
| Part Number | Description | Price* |

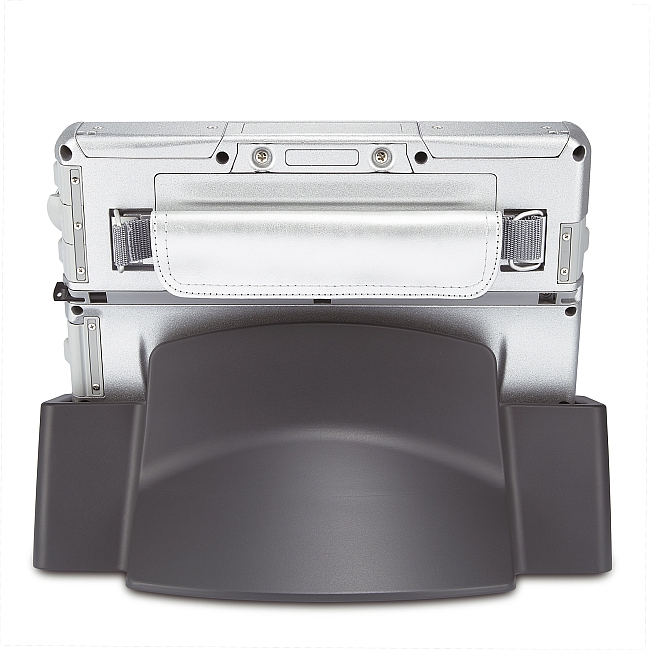

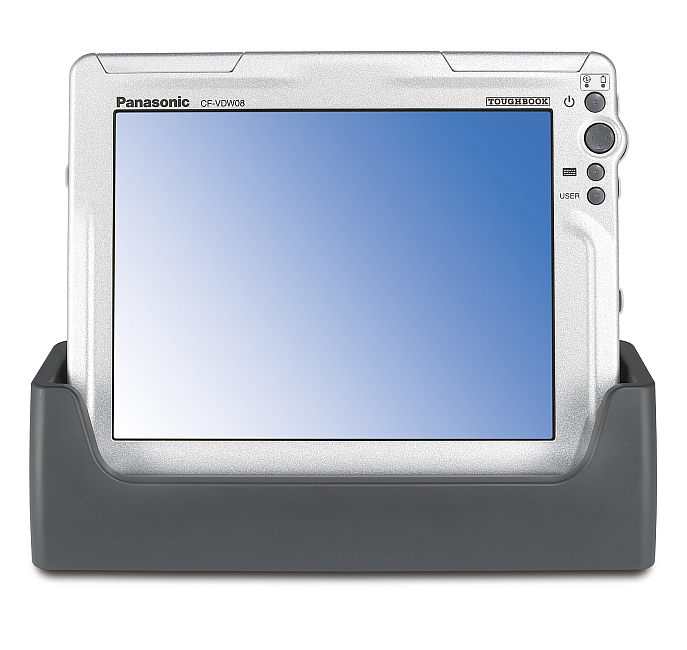

| CF-VEB081AU | Panasonic Desktop Cradle for CF-08 | £145.05 |
| CF-AA1623AE | Panasonic Power Supply Unit (3-pin) for CF-08 | £39.75 |
| CF-VZSU44U | Panasonic Li-Ion Battery Pack for CF-08 | £109.75 |
| CF-VPF08U | Panasonic 10.4" LCD Protective Film for CF-08 | £51.52 |
| CF-VNC001W | Panasonic Screen Cleaning Cloth | £8.63 |
*Please note all prices shown are exclusive of VAT
| LCD | 10.4“ daylight-readable Active Matrix (TFT) colour LCD with touchscreen (up to 460 cd) |
| 1024 x 768 pixel (XGA) | |
| Durability Features | Designed using MIL-STD-810F test procedures |
| Full magnesium alloy case | |
| Moisture and dust-resistant LCD | |
| Sealed port and connector covers | |
| Vibration and drop-shock resistant | |
| Pre-installed replaceable screen film for touchscreen protection | |
| LCD-Cabinet | Magnesium alloy |
| Buttons | Power, Keyboard, Cursor Control Button, User Button |
|
Processor |
Intel® PXA270 (312 MHz) |
| Memory (RAM/ROM) | 64MB RAM / 32MB ROM |
| Wireless | Bluetooth® (v 1.2 class 2) |
| WLAN IEEE 802.11 b/g | |
| WLAN Security (authentication: WPA/WPA2, 802.1x: TLS/PEAP; Encryption: AES/TKIP/WEP) | |
| Speaker | Integrated Speaker |
| Input Methods | Touchscreen LCD |
| Stylus Pen (integrated holder) | |
| Software Keyboard | |
| Interfaces | Headphone/Speaker: Mini-jack (Stereo) |
| Microphone: Mini-jack | |
| USB 1.1: 4-pin | |
| LAN (10/100 Ethernet): RJ45 jack | |
| Expansion Slot | 1x SD card (secure digital memory) |
| Power | Battery: Li-Ion (7.4 V, 5200 mAh) |
| Battery life: Approx. 14 hours (Battery Mark 4.01 – min. brightness) | |
| Charging time: Approx. 4 hours/off (varies depending on usage conditions) | |
| AC Adapter | AC 100V–240V, 50/60Hz |
| Software | Citrix ICA Client, Microsoft® Remote Desktop Connection, Internet Explorer 6.0, Microsoft® Transcriber Handwriting Recognition, Software Keyboard, Display Rotation Tool, Signature Capture |
| Security Features | No data stored locally |
| Cable lock slot | |
| Dimensions (WxHxD) | 267 mm x 208mm x 36mm / 10.5“ x 8.2“ x 1.4“ |
| Weight | 1.2 kg / 2.6 lbs (without handstrap) |
| Warranty | 1-year warranty covering hardware failures for systems used as designed. |
