Zebra ZT231 Industrial Label Printer
Smart features. Small investment. Big payoff
Zebra ZT231 Printer Models and Prices | Zebra ZT231 Ribbons and Labels | Zebra ZT231 Printer Specification |
Demands are rising and timelines are shrinking. Do you have the printing capabilities to keep up – without interruption? The ZT231 delivers the winning combination of the right features at the right price, along with the long-lasting quality you expect from Zebra. Fast print speeds, high-resolution print quality, large colour touchscreen, future-forward design and more – all in one space-saving footprint. Plus, add optional capabilities like RFID*, wireless connectivity and media handling features when you need them.
But that’s not all. Get built-in intelligence to make your work easier, and unmatched security so nothing stands in your way. That’s how Zebra defines value.
Take advantage of Zebra’s robust, ever growing Print DNA software suite for added capabilities. Easily configure, troubleshoot and manage your printers onsite or remotely via a web-based dashboard. Compare your printer security settings against best practices and adjust to match your preferences, while protecting your data from vulnerabilities.
The benefits of buying a ZT231 don’t end at the point of purchase. Expand your printer’s capabilities with field-installable upgrades when you need them. Add options such as a cutter or peeler, wireless connectivity or even UHF RFID* encoding.
Reduce training time with the ZT231’s easy-to-use 4.3” full-color touchscreen. See status at a glance, access wizards and helpful how-to videos and make changes with the touch of a finger or gloved hand. Seamlessly integrate the ZT231 into your existing network as it is backwards compatible and features Printer Emulations to replace other brands without having to change label formats or rewrite code.
With a durable metal frame, the ZT231 is ideal for light industrial environments. Print crisp text and barcodes with optional 300 dpi resolution. Advance your label throughput with industry-leading print speeds up to 12 ips at 203 dpi. Be confident knowing you’re backed by Zebra, the #1 leader in barcode printing.
The ZT231 includes an all-new architecture to process more jobs at once and evolve with emerging technologies. Onboard analytics and printhead element out detection help you plan maintenance in advance. And, the easy tool-less platen and print head removal makes maintenance easy.
Take advantage of a variety of standard connectivity options including USB, Serial, Ethernet and USB Host. Tap to pair and print with compatible mobile devices with the Print Touch tag (NFC). Add a second Ethernet port, 802.11ac or an Applicator port.
Markets and Applications
|
|
Model Number | Description | Price* |
ZT23142-D0E000FZ | Zebra ZT231 203dpi Direct Thermal Printer | £656.00 |
ZT23142-T0E000FZ | Zebra ZT231 203dpi Thermal Transfer Printer | £716.00 |
ZT23142-D1E000FZ | Zebra ZT231 203dpi Direct Thermal Printer with Peel Facility | £756.00 |
ZT23142-T1E000FZ | Zebra ZT231 203dpi Thermal Transfer Printer with Peel Facility | £816.00 |
ZT23142-D3E000FZ | Zebra ZT231 203dpi Direct Thermal Printer with Peel and Liner Takeup | £860.00 |
ZT23142-D0EC00FZ | Zebra ZT231 203dpi Direct Thermal Printer with Wireless 802.11ac | £899.00 |
ZT23142-T3E000FZ | Zebra ZT231 203dpi Thermal Transfer Printer with Peel and Liner Takeup | £919.00 |
ZT23142-D2E000FZ | Zebra ZT231 203dpi Direct Thermal Printer with Cutter and Catch Tray | £939.00 |
ZT23142-T0EC00FZ | Zebra ZT231 203dpi Thermal Transfer Printer with Wireless 802.11ac | £959.00 |
ZT23142-T2E000FZ | Zebra ZT231 203dpi Thermal Transfer Printer with Cutter and Catch Tray | £999.00 |
ZT23143-D0E000FZ | Zebra ZT231 300dpi Direct Thermal Printer | £856.00 |
ZT23143-T0E000FZ | Zebra ZT231 300dpi Thermal Transfer Printer | £916.00 |
ZT23143-T1E000FZ | Zebra ZT231 300dpi Thermal Transfer Printer with Peel Facility | £1016.00 |
ZT23143-D3E000FZ | Zebra ZT231 300dpi Direct Thermal Printer with Peel and Liner Takeup | £1059.00 |
ZT23143-T3E000FZ | Zebra ZT231 300dpi Thermal Transfer Printer with Peel and Liner Takeup | £1119.00 |
ZT23143-T0EC00FZ | Zebra ZT231 300dpi Thermal Transfer Printer with Wireless 802.11ac | £1159.00 |
ZT23143-T2E000FZ | Zebra ZT231 300dpi Thermal Transfer Printer with Cutter and Catch Tray | £1199.00 |
ZT231 standard features include UK and Euro Power Cords, Ethernet, USB, USB Host, Serial, Bluetooth. These thermal transfer printers also print direct thermal.
*Please note all prices shown are exclusive of VAT
Zebra ZT231 RFID | Zebra ZT111 | Zebra ZT230 | Zebra ZT411 | Zebra ZT421 |
From £1846.00 | From £525.00 | From £589.00 | From £1109.00 | From £2095.00 |
View All:
Zebra Industrial Printers
Zebra Printers
Type | Part Number | Description | Price* | |
Media Handling | P1123335-041 | Zebra Cutter Upgrade for ZT111, ZT211, ZT231 | £379.95 | |
P1123335-042 | Zebra Peel Upgrade for ZT111, ZT211, ZT231 | £172.95 | ||
P1037974-027 | Zebra Media Hanger for ZT111, ZT210, ZT211, ZT220, ZT230, ZT231 | £25.95 | ||
P1037974-028 | Zebra Platen Roller for ZT111, ZT210, ZT211, ZT220, ZT230, ZT231 | £44.95 | ||
P1037974-037 | Zebra Catch Tray for Cutter for ZT111, ZT210, ZT211, ZT220, ZT230, ZT231 | £25.95 | ||
Printheads | P1123335-012 | Zebra 203 dpi Printhead for ZT111, ZT211, ZT231 | £289.95 | |
P1123335-056 | Zebra 203 dpi Enhanced Printhead for ZT111, ZT211, ZT231, ZT231R | £279.95 | ||
P1123335-013 | Zebra 203 dpi Printhead for ZT111, ZT211, ZT231 | £389.95 | ||
P1123335-057 | Zebra 203 dpi Enhanced Printhead for ZT111, ZT211, ZT231, ZT231R | £379.95 | ||
Printhead Conversion | P1123335-017 | Zebra 203 dpi to 300 dpi Conversion Kit for ZT111, ZT211, ZT231 | £389.95 | |
P1123335-054 | Zebra 203 dpi to 300 dpi Conversion Kit for ZT111, ZT211, ZT231, ZT231R | £379.95 | ||
P1123335-018 | Zebra 300 dpi to 203 dpi Conversion Kit for ZT111, ZT211, ZT231 | £289.95 | ||
P1123335-055 | Zebra 300 dpi to 203 dpi Conversion Kit for ZT111, ZT211, ZT231, ZT231R | £279.95 | ||
Connectivity | P1123335-035 | Zebra Ethernet Card for ZT111, ZT211, ZT231 | £279.95 | |
P1083320-037C | Zebra Wireless Card 802.11ac | £310.95 | ||
Other | P1109127 | Zebra Designer 3 Pro Software Digital License Key | £175.99 | |
P1109020 | Zebra Designer 3 Pro Software Physical License Key | £175.99 | ||
P1123335-026C | Zebra RFID Module for ZT231 | £1194.00 | ||
79830M | Zebra Ribbon Supply Spindle for Ribbons Coated Inside for ZT111, ZT211, ZT231, ZT410, ZT411 | £79.95 |
Part Number | Description | Price* |
Ribbons | ||
03200BK06030 | Zebra 3200 Premium Wax/Resin Ribbon 60mm x 300m, box of 6 | £45.95 |
03200BK08330 | Zebra 3200 Premium Wax/Resin Ribbon 83mm x 300m, box of 6 | £63.95 |
03200BK11030 | Zebra 3200 Premium Wax/Resin Ribbon 110mm x 300m, box of 6 | £84.95 |
05095BK06030 | Zebra 5095 Performance Resin Ribbon 60mm x 300m, box of 6 | £89.95 |
05095BK08330 | Zebra 5095 Performance Resin Ribbon 83mm x 300m, box of 6 | £124.95 |
05095BK11030 | Zebra 5095 Performance Resin Ribbon 110mm x 300m, box of 6 | £164.95 |
Labels | ||
76180 | Zebra Z-Perform 1000T TT Economy paper Label 102mm x 152mm, Perm Adhesive, 950 p/r, box of 4 | £62.95 |
76059 | Zebra Z-Select 2000T TT Premium paper Label 102mm x 64mm, Perm Adhesive, 2220 p/r, box of 4 | £91.95 |
76060 | Zebra Z-Select 2000T TT Premium paper Label 102mm x 152mm, Perm Adhesive, 950 p/r, box of 4 | £91.95 |
Part Number | Description | Price* |
Z1A2-ZT231-100 | Zebra OneCare, Essential, Purchased within 30 days of Device, ZT231, ZT231 RFID, Second Business Day Onsite, 1 Year, Non-comprehensive Cover | £183.95 |
Z1AE-ZT231-3C0 | Zebra OneCare, Essential, Purchased within 30 days of Device, ZT231, ZT231 RFID, 3 Day TAT, 3 Years, Comprehensive Cover | £229.95 |
Z1A2-ZT231-1C0 | Zebra OneCare, Essential, Purchased within 30 days of Device, ZT231, ZT231 RFID, Second Business Day Onsite, 1 Year, Comprehensive Cover | £293.95 |
Z1AE-ZT231-5C0 | Zebra OneCare, Essential, ZT231, ZT231 RFID, 5 Years, Carry-in, Parts & Labour, Comprehensive Cover | £374.95 |
*Please note that all prices shown are exclusive of VAT
Standard Features | Print methods: direct-thermal or thermal-transfer |
Construction: metal frame and metal enclosures | |
Bi-fold media door with large clear window | |

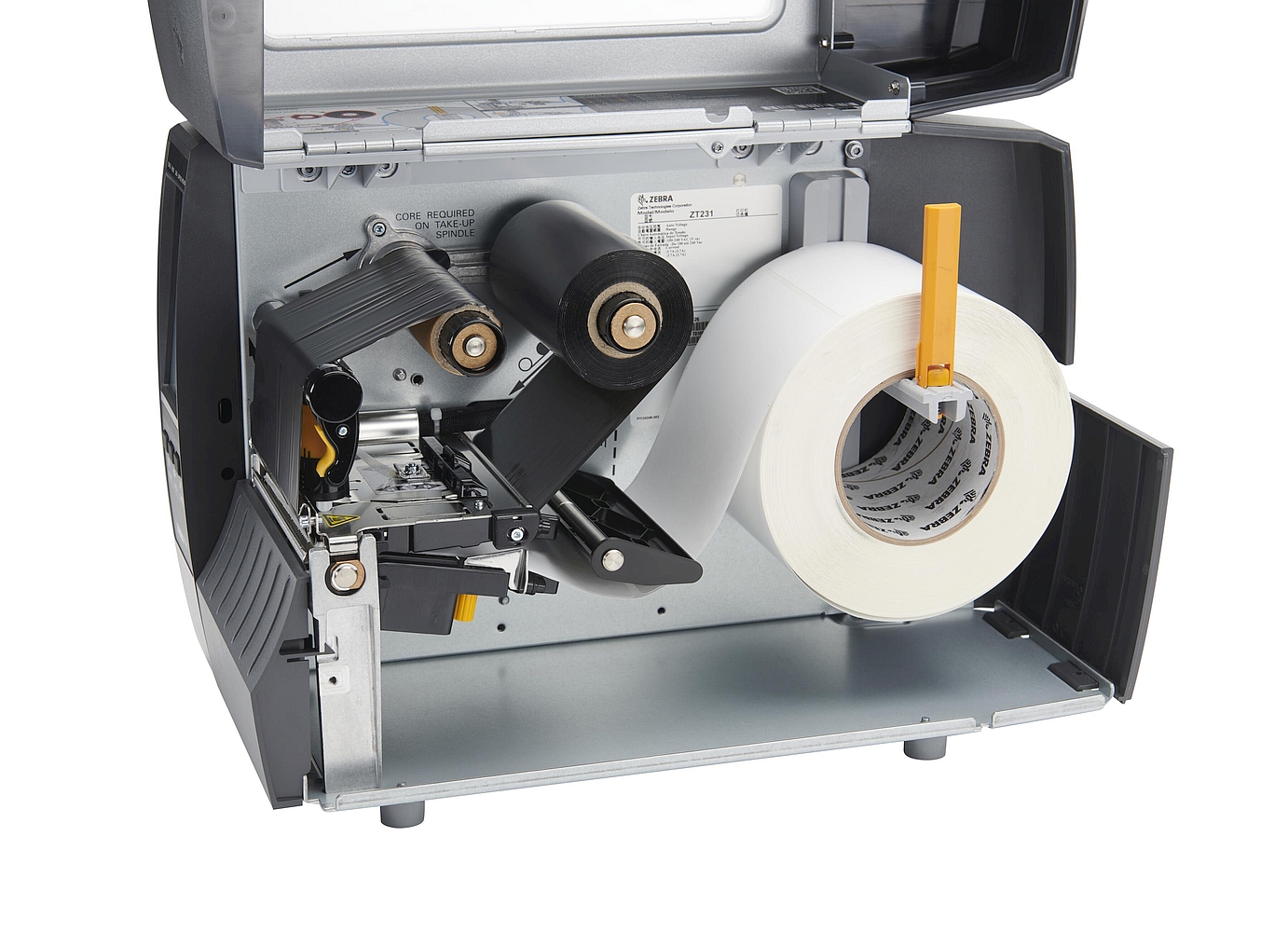

Side-loading supplies path for simplified media and ribbon loading | |
Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality | |
Three-color LEDs for quick printer status | |
4.3” color resistive touch screen with intuitive menu for quick operation and settings | |
Communications: USB 2.0, RS-232 Serial port, 10/100 Ethernet, and USB Host | |
ENERGY STAR® certified | |
Bluetooth Low Energy (BTLE) technology for enhanced location precision | |
ZebraDesigner Essentials – easy label design tool free at www.zebra.com/zebradesigner | |
Real-Time Clock (RTC) | |
Printer Characteristics | Dimensions |
ZT231 Closed: 17 in. L x 9.5 in. W x 11 in. H 432 mm L x 241 mm W x 279 mm H |
|
ZT231 with Liner Takeup Unit: 17 in. L x 9.5 in. W x 12.75 in. H 432 mm L x 241 mm W x 324 mm H |
|
Weight | |
ZT231: 20 lbs./10.9 kg ZT231 with Liner Takeup Unit: 24 lbs./10.9 kg |
|
*Dimensions are for the base model printer. Consult your sales representative for specifics regarding other configurations. | |
Printer Specifications | Resolution |
203 dpi/8 dots per mm | |
300 dpi/12 dots per mm (optional) | |
Memory | |
256 MB SDRAM memory 256 MB on-board linear Flash memory |
|
Maximum Print Width | |
4.09”/104 mm | |
Maximum Print Speed | |
12 ips (203 dpi) 8 ips (300 dpi) |
|
Media Sensors | |
Moveable transmissive and reflective sensor | |
Maximum Print Length | |
203 dpi: 157 in/3988 mm 300 dpi: 73in/1854 mm |
|
Media Characteristics | Minimum Label and Liner Length |
Tear mode: 0.7 in/18 mm Cutter mode: 1 in/25 mm Peel mode: 0.5 in/13 mm |
|
Media Width | |
0.75 in./19.4 mm to 4.50 in./114 mm | |
Media Roll Size | |
8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core 6.0 in./152 mm O.D. on a 1.0 in./25 mm I.D. core |
|
Media Thickness | |
0.003 in./0.076 mm to 0.010 in./0.25 mm | |
Media Types | |
Continuous, die-cut, notch, black mark | |
Ribbon Characteristics (Thermal-transfer option only) | Standard Length |
1,476 ft./450 m | |
Width | |
2 in./51 mm to 4.33 in./110 mm | |
Core | |
1.0 in./25.4 mm | |
Operating Characteristics | Operating Temp. |
Thermal transfer: 40ºF to 105ºF/5º to 40ºC Direct thermal: 32ºF to 105ºF/0º to 40ºC |
|
Storage/Transportation Temperature | |
-40ºF to 140ºF/-40º to 60ºC | |
Operating Humidity | |
20% to 85% non-condensing | |
Storage Humidity | |
5% to 85% non-condensing | |
Electrical | |
Universal auto-ranging (PFC-compliant) power supply 100-240 VAC; 50-60 Hz ENERGY STAR certified | |
Agency Approvals | |
IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, UKCA, VCCI, RCM, S- Mark, CCC, CU EAC, BSMI, KCC, & BIS | |
Print DNA Software | This printer is supported by the Print DNA suite of software capabilities to get your printer up and running quickly and securely, and enable your printer to evolve with your business needs. Print DNA features may vary by model, and some features may require a license. For more information, please visit www.zebra.com/printdna |
Firmware | ZBI 2.0™ — Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more. |
ZPL and ZPL II™ — Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers. | |
EPL and EPL2™ — Eltron Programming Language with Line Mode simplifies label formatting and enables format compatibility with legacy applications. (EPL with Line Mode available on direct thermal models only.) (EPL available on 203 dpi models only.) | |
Barcode Symbologies |
Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with 2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code 2D Barcodes: Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS-14 (and composite) |
Fonts and Graphics | 7 bitmapped, 1 smooth-scalable (CG Triumvirate™ Bold Condensed*) Pre-loaded Unicode™-compliant scalable fonts for EMEA character sets International character sets supporting the following code page: IBM® Code Page 850 Supports user-defined fonts and graphics, including custom logos ZPL II drawing commands including boxes and lines 64 MB user available Flash memory storage for downloadable objects; 32 MB user-available SDRAM |
Options and Accessories | Communication |
• 802.11ac Wi-Fi option card | |
• 10/100 Ethernet option card | |
• Applicator Interface | |
Media Handling | |
• Peel — a front-mount, passive-peel with no take-up spindle | |
• Peel — a front-mount, passive-peel with liner take-up spindle (factory-fit only) | |
• Cutter — a front-mount guillotine cutter | |
RFID* | |
• UHF field-installable RFID kit | |
Keyboard Display Unit | |
• ZKDU™ keyboard display units for stand-alone printing applications | |
Product Warranty | ZT231 Value Industrial printer is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For the complete warranty statement, please visit www.zebra.com/warranty |
Managed Print Services (MPS) Made Simple | These printers offer innovative remote management, analytics and security capabilities that make them the obvious choice for MPS. With the Print DNA software suite, your Zebra MPS provider can remotely manage and optimize your printers, track and automate supplies replenishment and ensure security. For more information, please visit www.zebra.com/managed-print-services |
* RFID option available on request; contact your Zebra account team for more information
