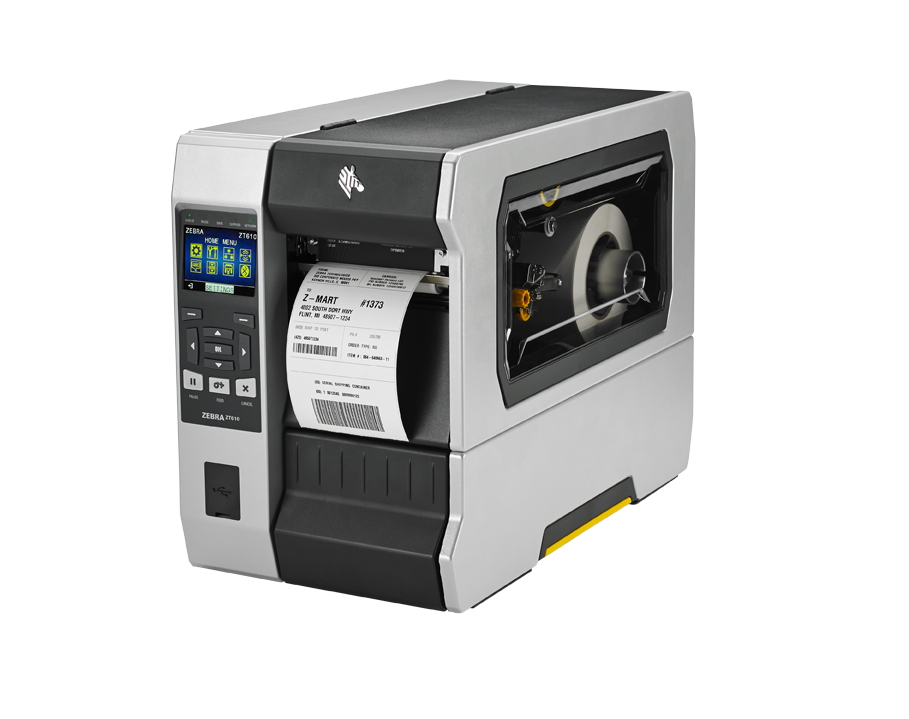

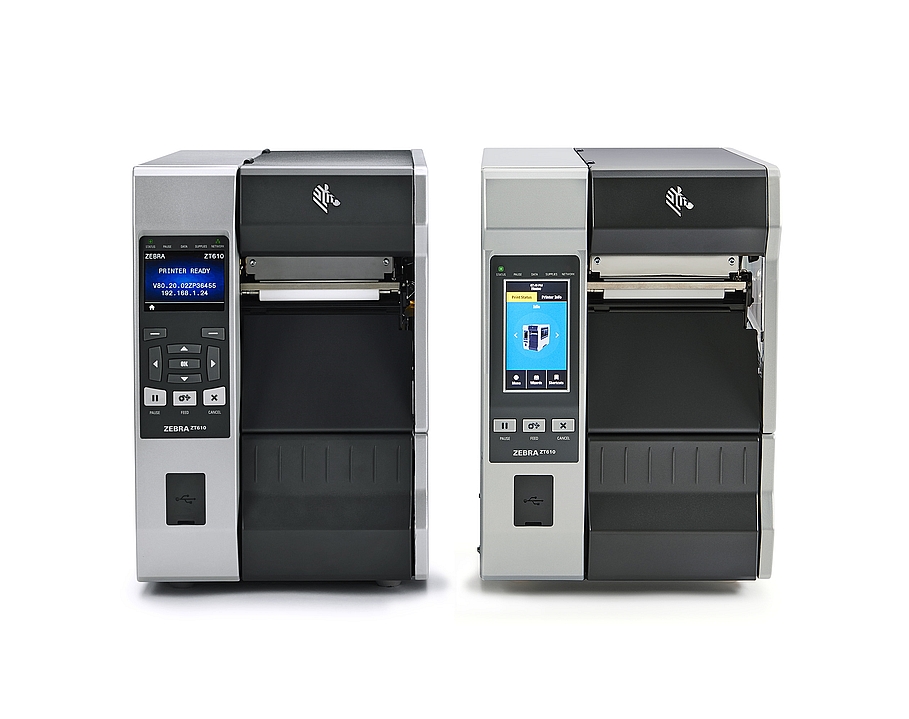

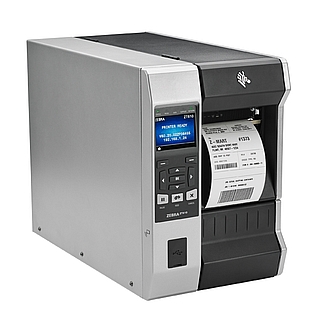

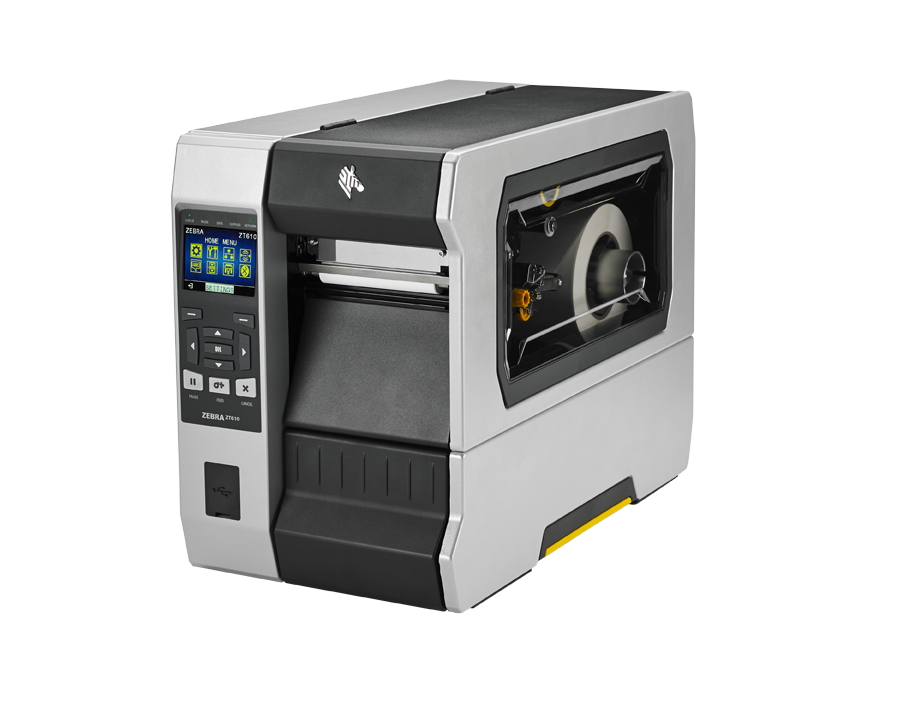

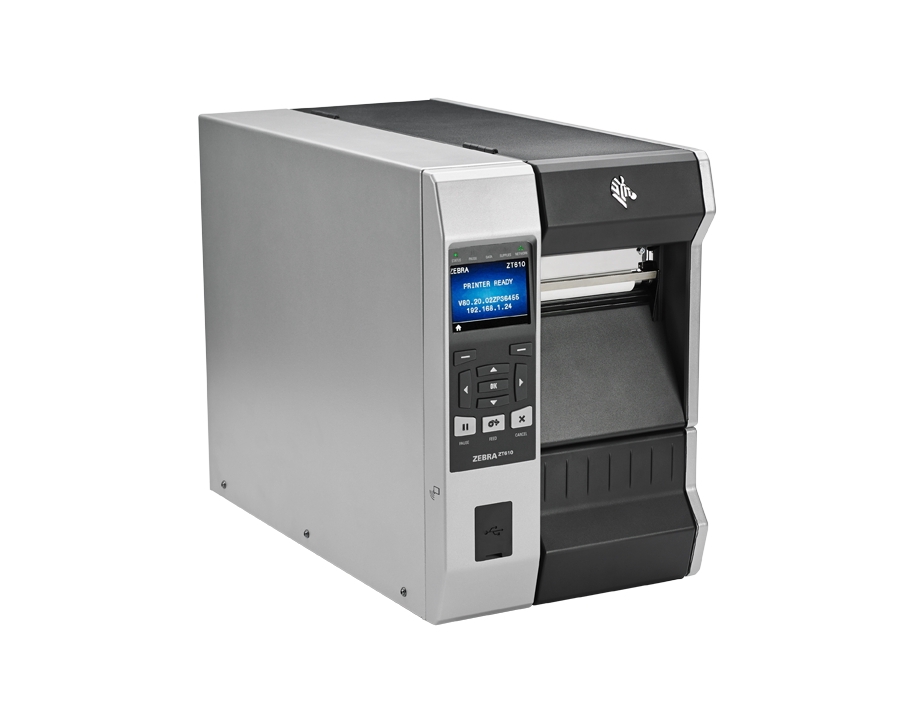

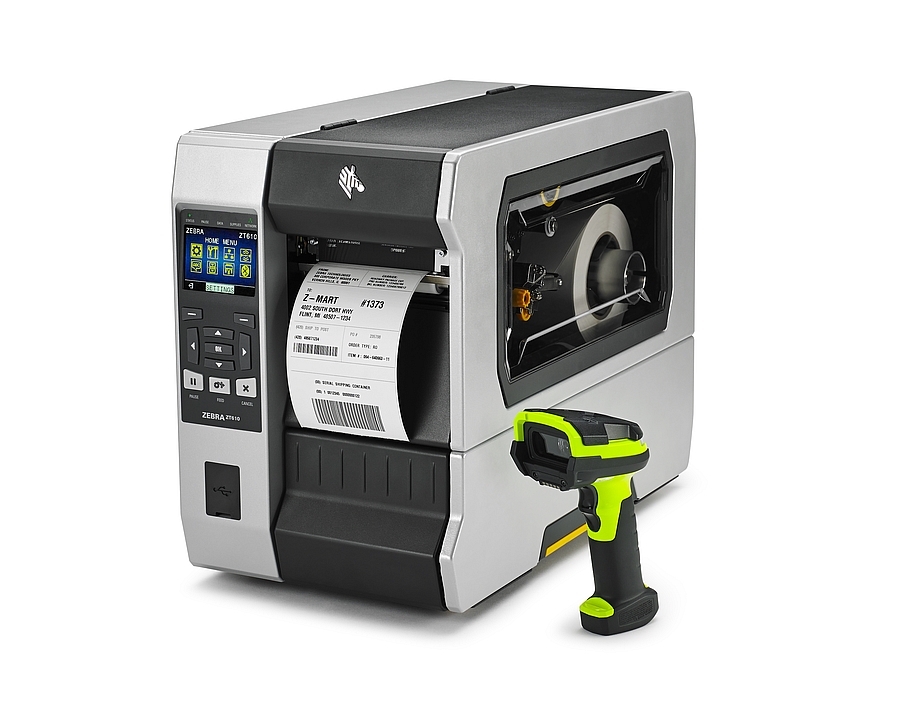

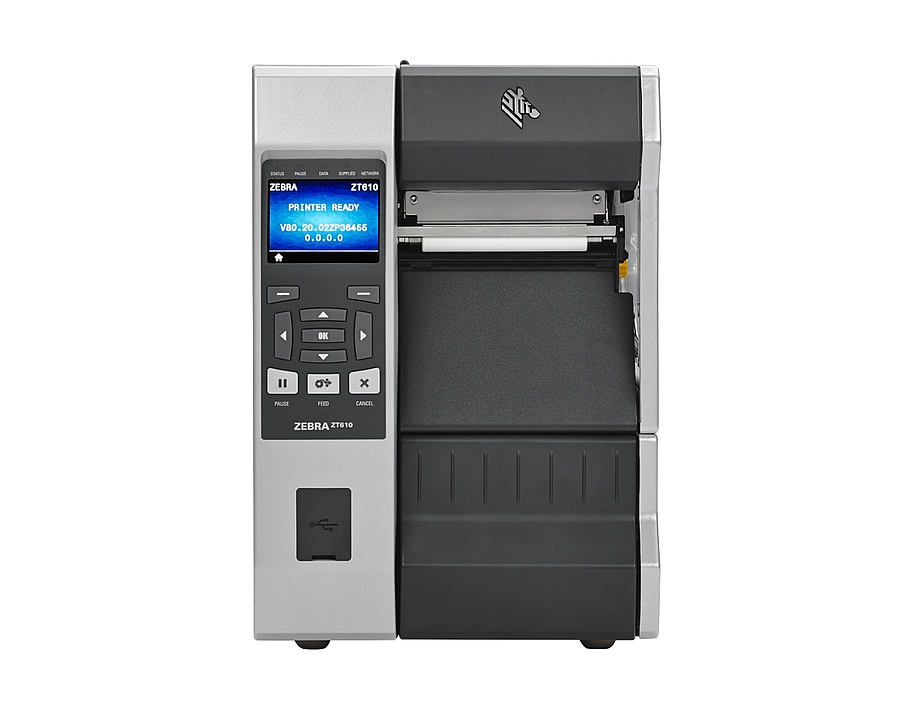

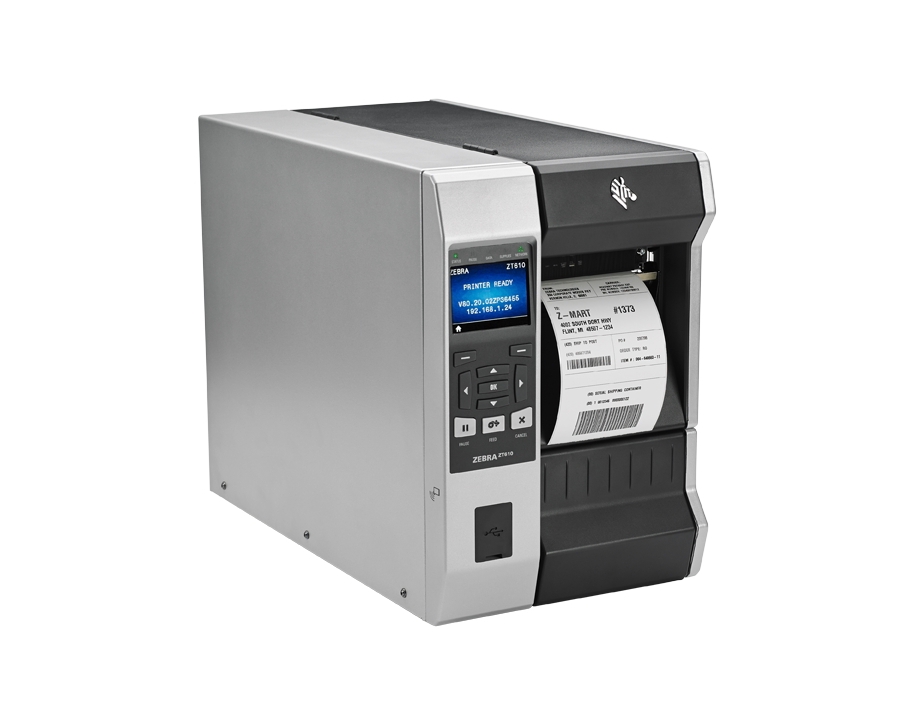

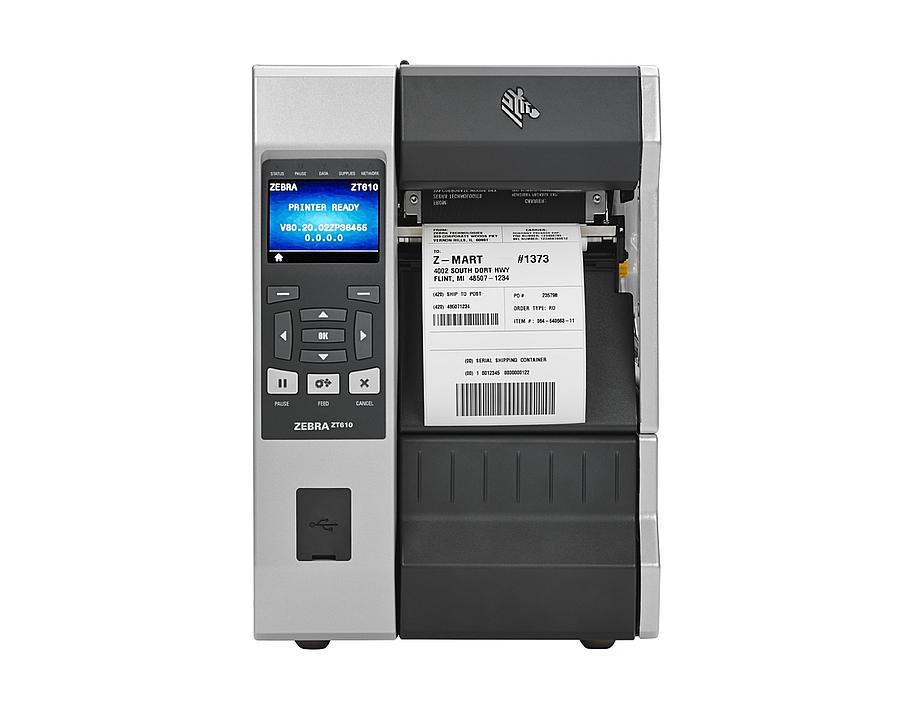

Zebra ZT610 Industrial Label Printer
The next generation Xi Series, now with more intelligence and industrial brawn
| Zebra ZT610 Printer Models and Prices | Zebra ZT610 Ribbons and Labels | Zebra ZT610 Specification |

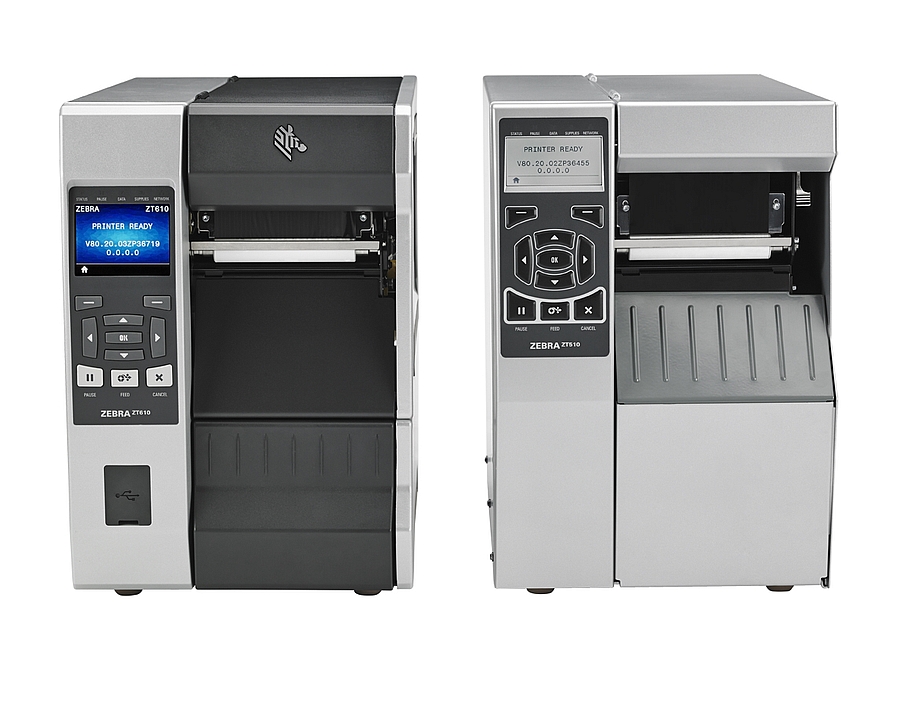

Advancing the legacy of their industry-leading Xi Series predecessors, the ZT610 and ZT620 combine rugged durability and exceptional performance on a user-friendly, future-ready platform. These next generation workhorses are designed to help you navigate the rapidly evolving business technology landscape. So, whether you're concerned about growing production line demands, increasing operational complexities, integrating disparate systems or controlling investment costs, ZT600 Series Industrial Printers have you covered today - and for years to come.
Zebra's industrial printers are well known for their durability, fast print speed, long life span and unparalleled reliability. The ZT610 and ZT620 build on that legacy, with the most advanced, comprehensive feature sets of any Zebra stationary printer series and are designed to keep your critical operations running smoothly across a broad range of applications.
ZT600 Series printers are built to withstand the most demanding industrial conditions, virtually eliminating operational downtime due to printer failure. Plus, they meet your high-volume production needs, day in and day out, with superior print quality and speed across the widest range of applications.

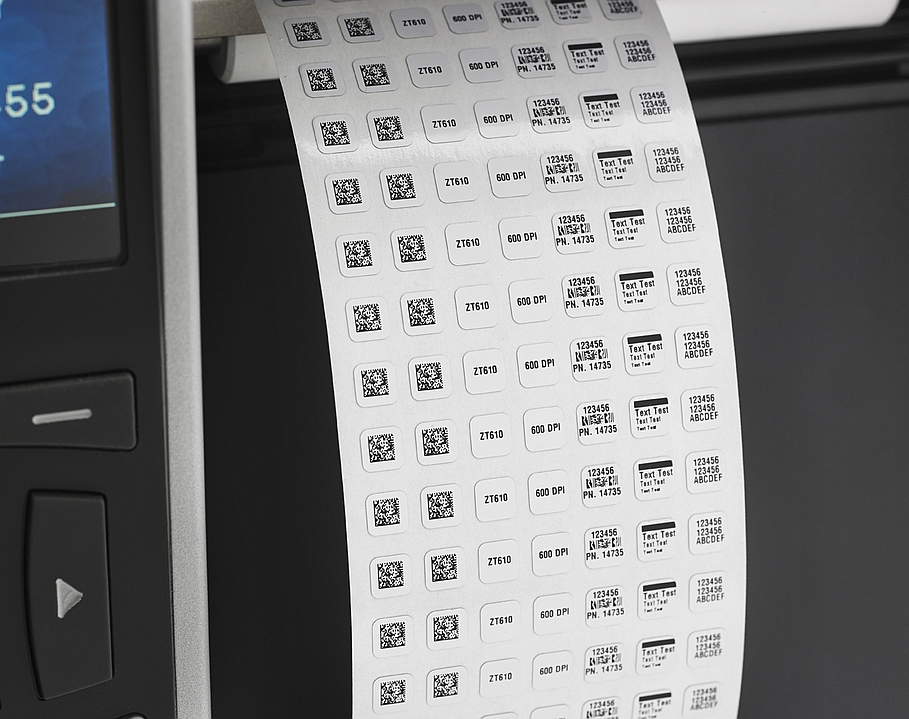

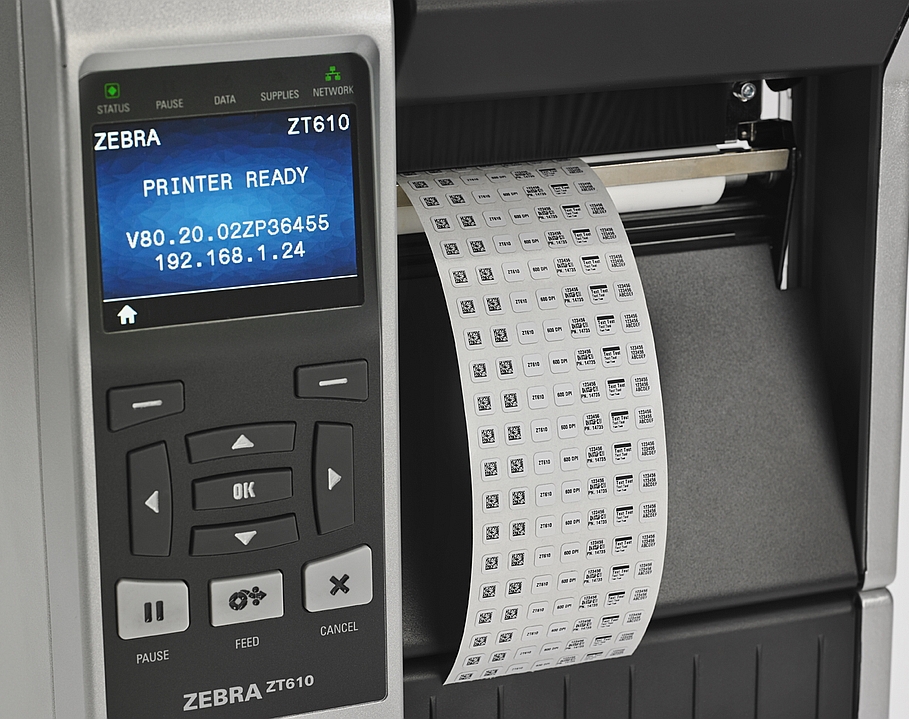

Featuring highly precise registration and print line adjustment, the ZT610 offers 600 dpi printing for labels as small as 3 mm for applications like circuit boards, chips and miniature components - all without wasting expensive media due to improper printing.

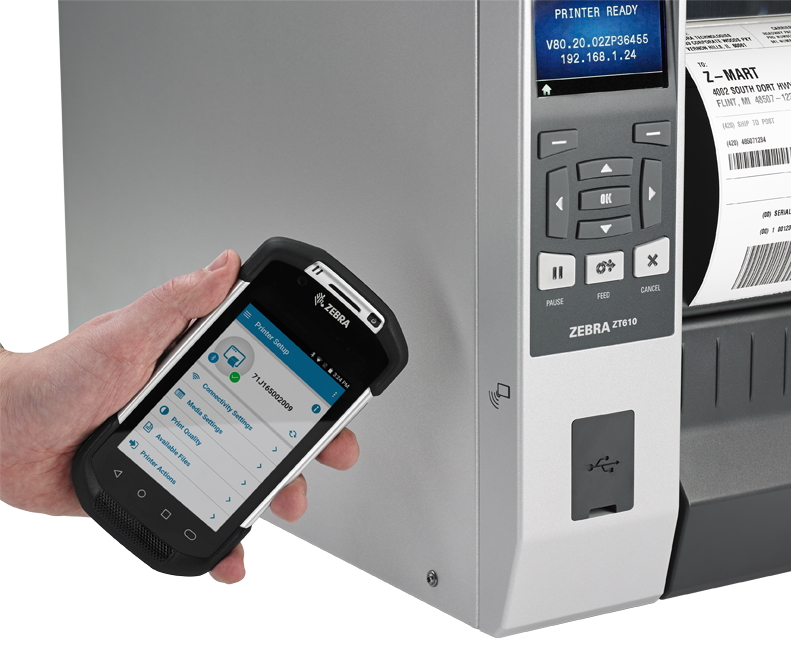

Intuitive Link-OS® applications and user-friendly design features streamline everything from deployment to daily use to routine maintenance. Compatibility with other printing systems and technologies simplifies integration and management, while onboard sensors, diagnostics and help resources guide troubleshooting so users don't have to call in support for every minor issue.
The last thing you need is a new piece of technology that will be obsolete in just a couple of years. That's why the ZT600 Series was designed with the future in mind - from an adaptable design that allows communications, media handling and other upgrades in the field, to compatibility with SOTI and AirWatch device management software, to intuitive Link-OS applications that simplify updates and reconfiguration as needed.
Ideal for these applications:
|
|
| Model Number | Description | Price* |
| ZT61042-T0E0100Z | Zebra ZT610 Printer 203dpi TT/DT with Standard Features and Keyboard | £1770.00 |

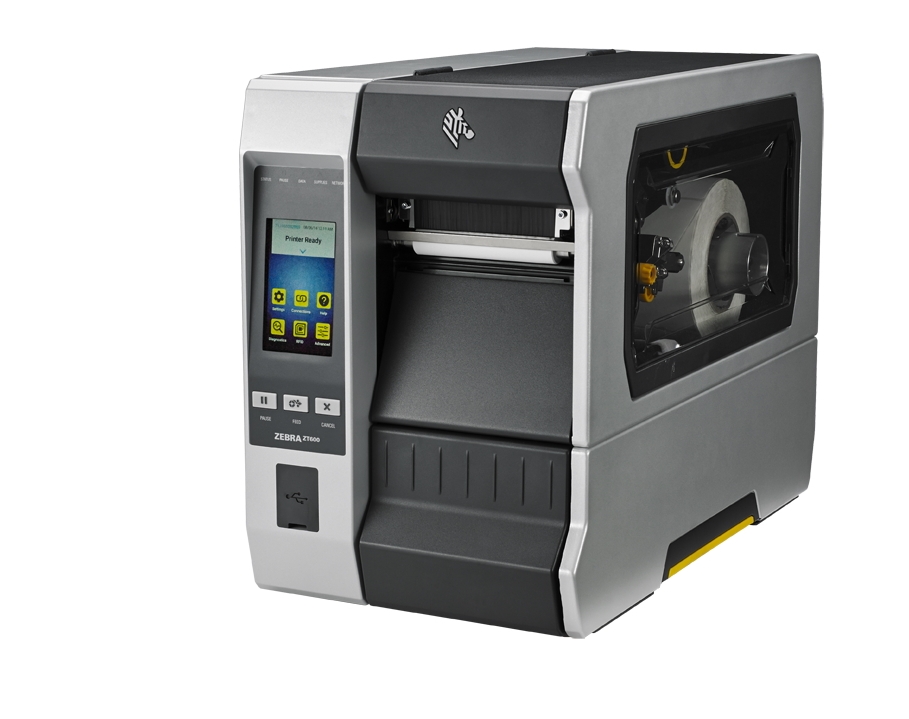

| ZT61042-T2E0200Z | Zebra ZT610 Printer 203dpi TT/DT with Standard Features and Colour Touch Display, Rewind | £1880.00 |
| ZT61042-T2E0100Z | Zebra ZT610 Printer 203dpi TT/DT with Standard Features and Keyboard, Rewind | £1905.00 |
| ZT61042-T0EC100Z | Zebra ZT610 Printer 203dpi TT/DT with Standard Features and Keyboard, Wireless 802.11ac Card | £1990.00 |
| ZT61042-T1E0200Z | Zebra ZT610 Printer 203dpi TT/DT with Standard Features and Colour Touch Display, Cutter | £2070.00 |
| ZT61042-T1E0100Z | Zebra ZT610 Printer 203dpi TT/DT with Standard Features and Keyboard, Cutter | £2095.00 |
| ZT61043-T0E0200Z | Zebra ZT610 Printer 300dpi TT/DT with Standard Features and Colour Touch Display | £1875.00 |
| ZT61043-T0E0100Z | Zebra ZT610 Printer 300dpi TT/DT with Standard Features and Keyboard | £1899.00 |
| ZT61043-T2E0100Z | Zebra ZT610 Printer 300dpi TT/DT with Standard Features and Keyboard, Rewind | £2035.00 |
| ZT61043-T0EC100Z | Zebra ZT610 Printer 300dpi TT/DT with Standard Features and Keyboard, Wireless 802.11ac Card | £2120.00 |
| ZT61043-T1E0200Z | Zebra ZT610 Printer 300dpi TT/DT with Standard Features and Colour Touch Display, Cutter | £2195.00 |
| ZT61043-T1E0100Z | Zebra ZT610 Printer 300dpi TT/DT with Standard Features and Keyboard, Cutter | £2225.00 |
| ZT61046-T0E0100Z | Zebra ZT610 Printer 600dpi TT/DT with Standard Features and Keyboard | £2995.00 |
| ZT61046-T2E0100Z | Zebra ZT610 Printer 600dpi TT/DT with Standard Features and Keyboard, Rewind | £3150.00 |
| ZT61046-T2E0200Z | Zebra ZT610 Printer 600dpi TT/DT with Standard Features and Colour Touch Display, Rewind | £3295.00 |
ZT610 standard features are TT and DT, UK and EU leads, ZPL, RS232 Serial, USB, Ethernet (Gigabit), Bluetooth 4.0
*Please note all prices shown are exclusive of VAT
| Zebra ZT620 | Zebra ZT510 | Zebra ZT411 | Zebra ZT421 | Zebra 220Xi4 |
 |
 |
 |
 |
 |
| From £2765.00 | From £1525.00 | From £1109.00 | From £2095.00 | From £5595.00 |
View All:
Zebra Industrial Printers
Zebra Printers
| Type | Part Number | Description | Price* | |
| Media Handling | P1083320-134 | Zebra Cutter Upgrade Kit for ZT610 | £513.29 | |
| P1083320-084 |
 |
Zebra Full Media Rewinder for ZT610 | £201.35 | |
| Printheads | P1083320-010 |
 |
Zebra 203 dpi Printhead for ZT610 | £437.35 |
| P1083320-011 | Zebra 300 dpi Printhead for ZT610 | £487.75 | ||
| P1083320-012 |
 |
Zebra 600 dpi Printhead for ZT610 | £622.35 | |
| Connectivity | P1083320-037C | Zebra Wi-Fi Card: Wireless 802.11 ac for EMEA for ZT510, ZT610, ZT620 | £310.95 | |
| P1083320-038 |
 |
Zebra Applicator Interface Card 5V-24V for ZT610, ZT620 | £141.35 | |
| P1083320-039 | Zebra Ethernet Internal PrintServer for ZT510, ZT610, ZT620 | £269.15 | ||
| P1083320-040 | Zebra Parallel Interface Card for ZT510, ZT610, ZT620 | £71.30 | ||
| P1083320-094 |
 |
Zebra USB Host Card for ZT610, ZT620 | £77.15 | |
| Other | P1083320-032 | Zebra Platen Roller for ZT610 | £46.25 | |
| P1083320-041C | Zebra RFID Upgrade Kit for ZT610 | £1280.00 | ||
| P1083320-059 |
 |
Zebra Media Supply Hanger for ZT610 | £87.85 | |
| P1083320-113 |
 |
Zebra Media Supply Spindle for 40mm ID Cores for ZT610 | £155.59 |
| Part Number | Description | Price* |
| Ribbons | ||
| 02300BK11045 | Zebra 2300 Economy Wax Ribbon, Black, 110mm x 450M, box of 12 for ZT610 | £114.95 |
| 02100BK11045 | Zebra 2100 Special Wax Ribbon, Black, 110mm x 450M, box of 12 for ZT610 | £132.95 |
| 03200BK11045 | Zebra 3200 Premium Wax/Resin Ribbon, Black, 110mm x 450M, box of 6 for ZT610 | £119.95 |
| Labels | ||
| 76180 | Zebra Z-Perform 1000T TT Economy paper Label 102mm x 152mm, Perm Adhesive, 950 p/r, box of 4 for ZT610 | £62.95 |
| 76059 | Zebra Z-Select 2000T TT Premium paper Label 102mm x 64mm, Perm Adhesive, 2220 p/r, box of 4 for ZT610 | £91.95 |
| 76060 | Zebra Z-Select 2000T TT Premium paper Label 102mm x 152mm, Perm Adhesive, 950 p/r, box of 4 for ZT610 | £91.95 |
| Part Number | Description | Price* |
| Z1AE-ZT61-3C0 | Zebra OneCare, Essential, Purchased within 30 days of Device, ZT610, 3 Years, Comprehensive Cover | £418.00 |
| Z1AE-ZT61-5C0 | Zebra OneCare, Essential, Purchased within 30 days of Device, ZT610, 5 Years, Comprehensive Cover | £835.00 |
| Z1AS-ZT61-300 | Zebra OneCare, Select, Purchased within 30 days of Device, ZT610, 3 Years, Advanced Exchange | £309.00 |
| Z1AS-ZT61-3C0 | Zebra OneCare, Select, Purchased within 30 days of Device, ZT610, 3 Years, Advanced Exchange, Comprehensive Cover | £543.00 |
*Please note that all prices shown are exclusive of VAT
| Standard Features | Print Methods: Thermal transfer and direct thermal printing |
| Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window | |

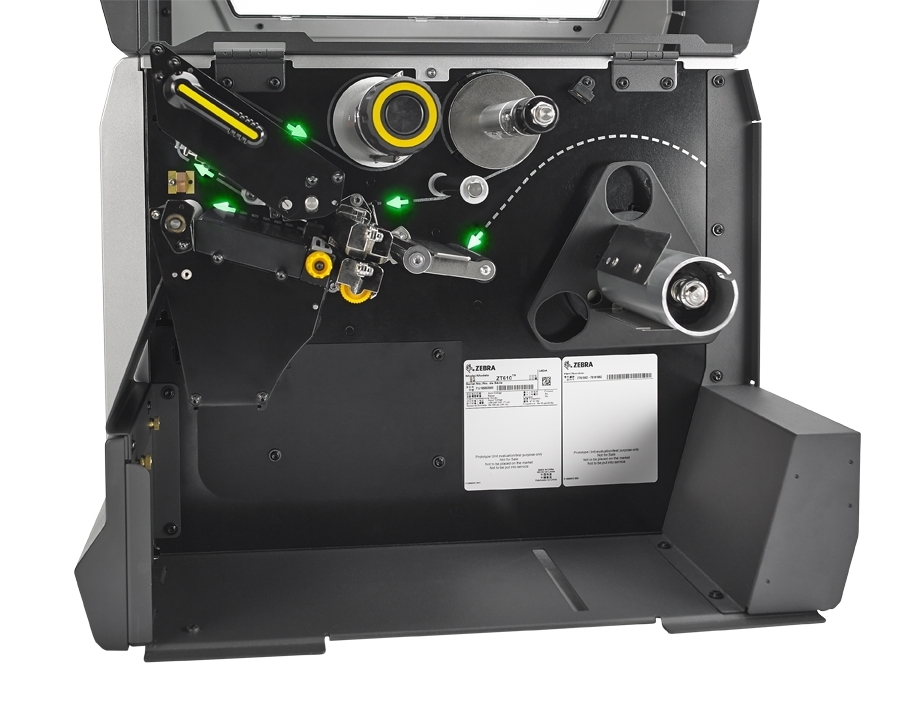

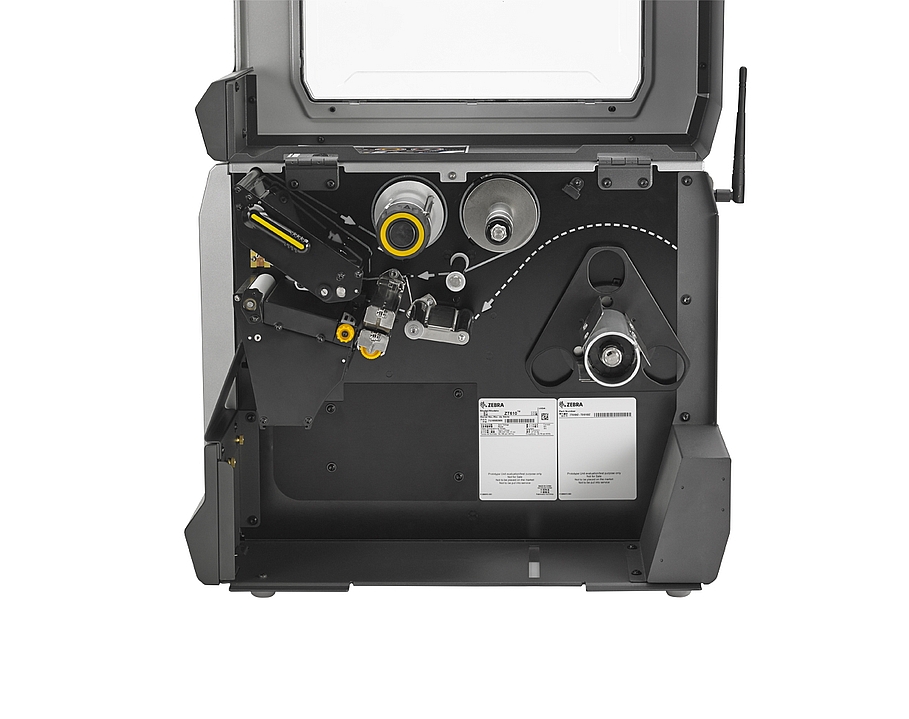

| Side-loading supplies path for simplified media and ribbon loading | |
| Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality | |
| Communications: USB 2.0 high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0 | |

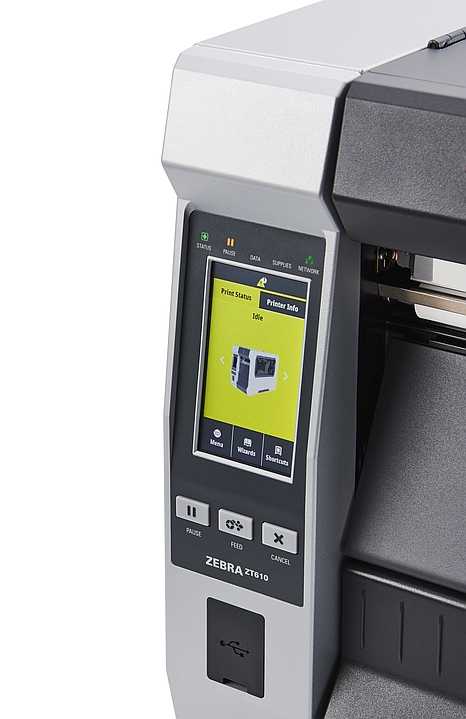

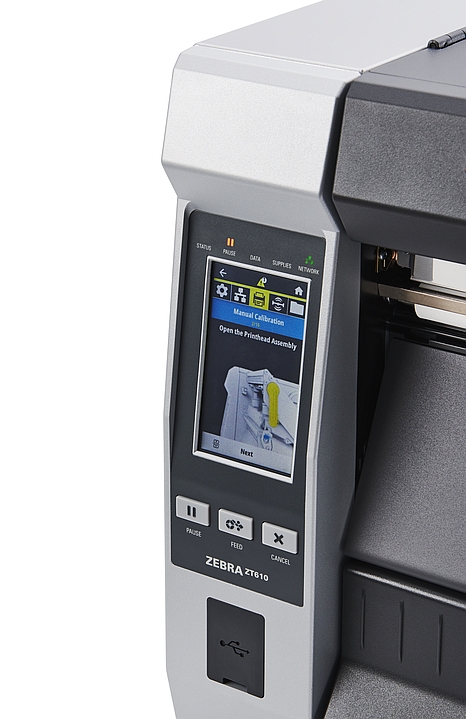

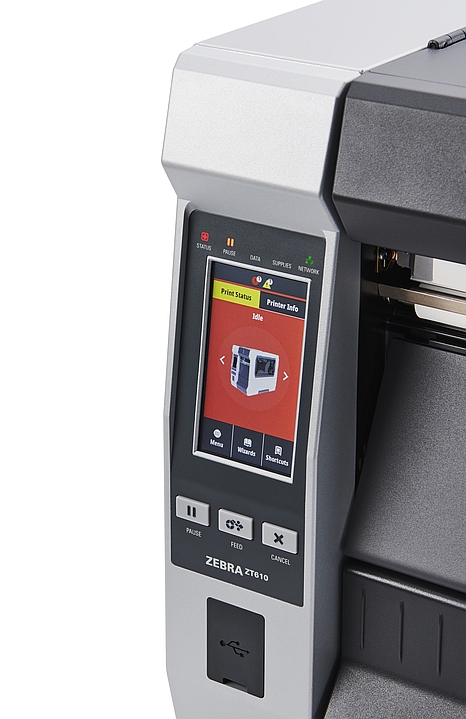

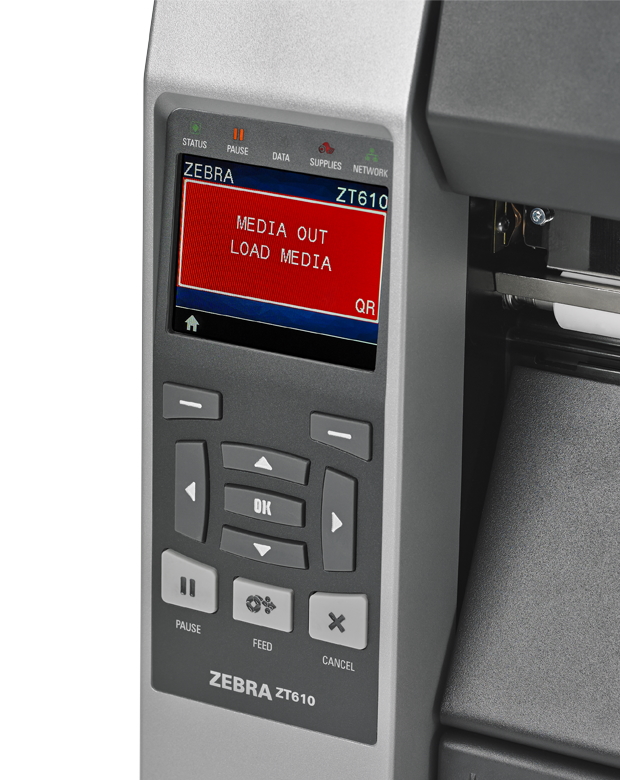

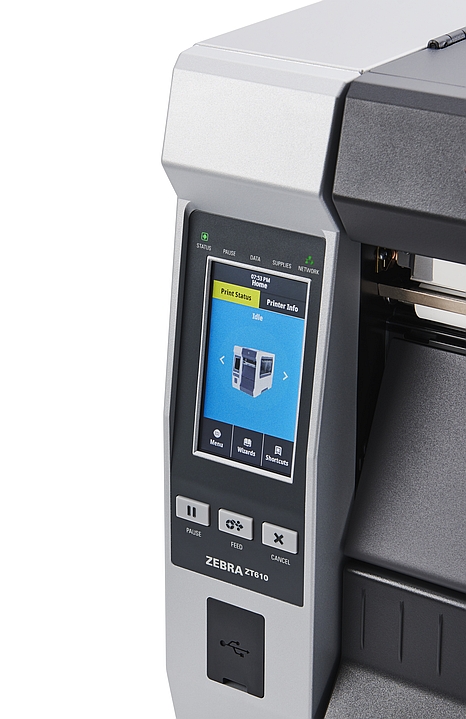

| Highly visible colour display that turns red when the printer is in an error state allows operators to determine printer status from a distance | |

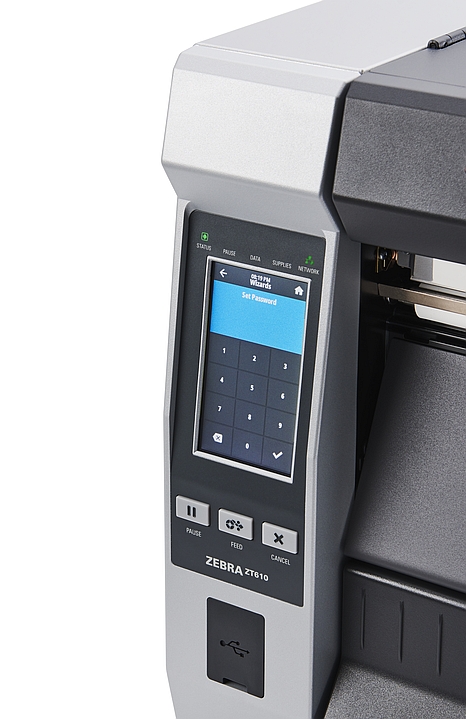

| Simplified icon menu navigation system categorises settings into logical groups of functions | |
| Printer Specifications | Operating System |
| Link-OS® | |
| Resolution | |
| 203 dpi/8 dots per mm | |
| 300 dpi/12 dots per mm (optional) | |
| 600 dpi/24 dots per mm (optional) | |
| Memory | |
| 1 GB RAM memory | |
| 2 GB on-board linear Flash memory | |
| Maximum Print Width | |
| 4.09 in./104 mm | |
| Maximum Print Speed | |
| 14 ips/356 mm per second | |
| Media Sensors | |
| Dual media sensors: transmissive and reflective | |
| Maximum Continuous Print Length | |
| 203 dpi: 150 in./3810 mm | |
| 300 dpi: 130 in./3302 mm | |
| 600 dpi: 30 in./762 mm | |
| Media Characteristics | Media Width |
| 0.79 in./20 mm to 4.5 in./114 mm | |
| Maximum Media Roll Size | |
| 8 in./203 mm O.D. on a 3 in./76 mm I.D. core | |
| Thickness | |
| 0.0023 in./0.058 mm to 0.010 in./0.25 mm | |
| Media Types | |
| Continuous, die-cut, notch, black-mark | |
| Ribbon Characteristics | Standard Length |
| 1476 ft./ 450 M | |
| Width | |
| 0.79 in./20 mm to 4.33 in./110 mm | |
| Core | |
| 1.0 in./25.4 mm I.D. | |
| Operating Characteristics | Environmental |
| Operating Temperature: | |
| Thermal transfer: 40℉ to 104℉/ 5℃ to 40℃ | |
| Direct thermal: 32℉ to 104℉/ 0℃ to 40℃ | |
| Operating Humidity: 20% to 85% non-condensing | |
| Storage/Transportation Temperature: -22℉ to 140℉/ -30℃ to 60℃ | |
| Storage Humidity: 20% to 85% non-condensing | |
| Electrical | |
| Auto-detectable (PFC Compliant) 90-265VAC, 47-63Hz, rated at 250 Watts | |
| ENERGY STAR qualified | |
| Agency Approvals | |
| IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN61000-3-3 | |
| cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro | |
| Physical Characteristics | Closed |
| Length: 19.88 in./505 mm | |
| Width: 10.56 in./268.2 mm | |
| Height: 15.58 in./395.68 mm | |
| Weight: 50 lbs/22.7 kg | |
| Print DNA Software Solutions | Development Tools - With faster, easier and smarter integration of Zebra printers with your devices and applications, your Zebra printing solutions are up and running in less time, with less cost. |
| Management Tools - Minimise IT effort and maximise IT control with Print DNA management tools - the easy way to add and manage any number of printers, anywhere - from a handful of printers to thousands of printers all around the world. | |
| Productivity Tools - Reach new levels of productivity with innovations that streamline tasks and workflow, optimise device performance and solve tomorrow's printing problems today. | |
| Visibility Tools - Regardless of whether or not you have an existing Mobile Device Management solution in place, robust Visibility Tools provide unparalleled insight into printer health, usage and performance. | |
| Print DNA features may vary by model and a Support Contract may be required. For more information, please visit: www.zebra.com/printdna | |
| Firmware | ZBI 2.0™ - Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more. |
| ZPL and ZPL II® - Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers. | |
| XML-enabled Printing - Allows XML communications for barcode label printing. | |
| Barcode Symbologies | Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code |
| 2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec | |
| Fonts and Graphics | 16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts |
| Asian and other international scalable and smooth bitmapped fonts | |
| Unicode™: For multi-language printing | |
| Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats | |
| IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control | |
| Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0 | |
| 32 MB user available DRAM | |
| 512 MB user available on-board Flash | |
| Options and Accessories | Connectivity |

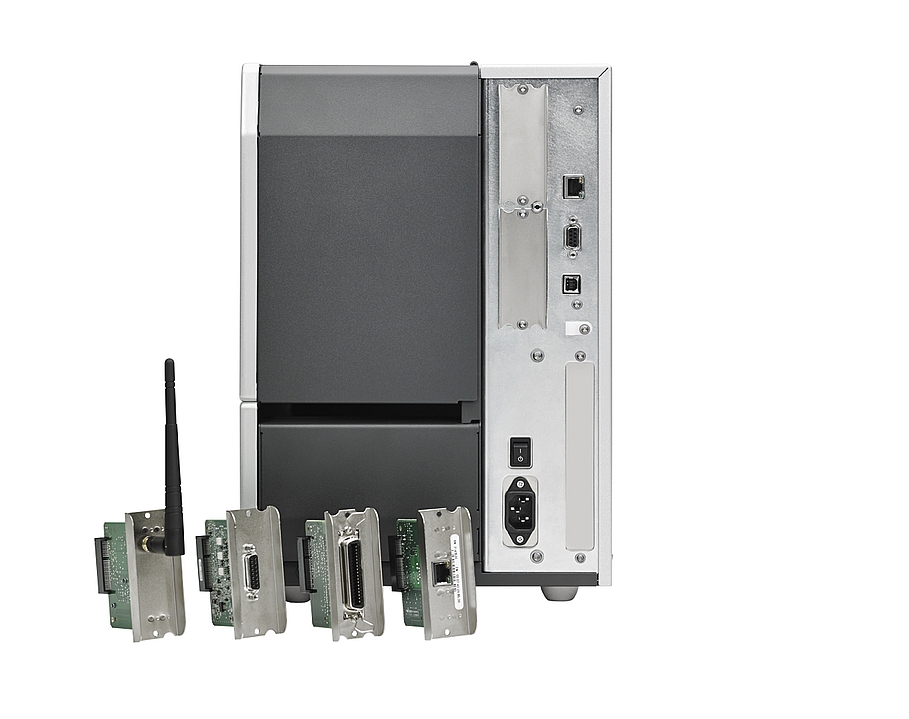

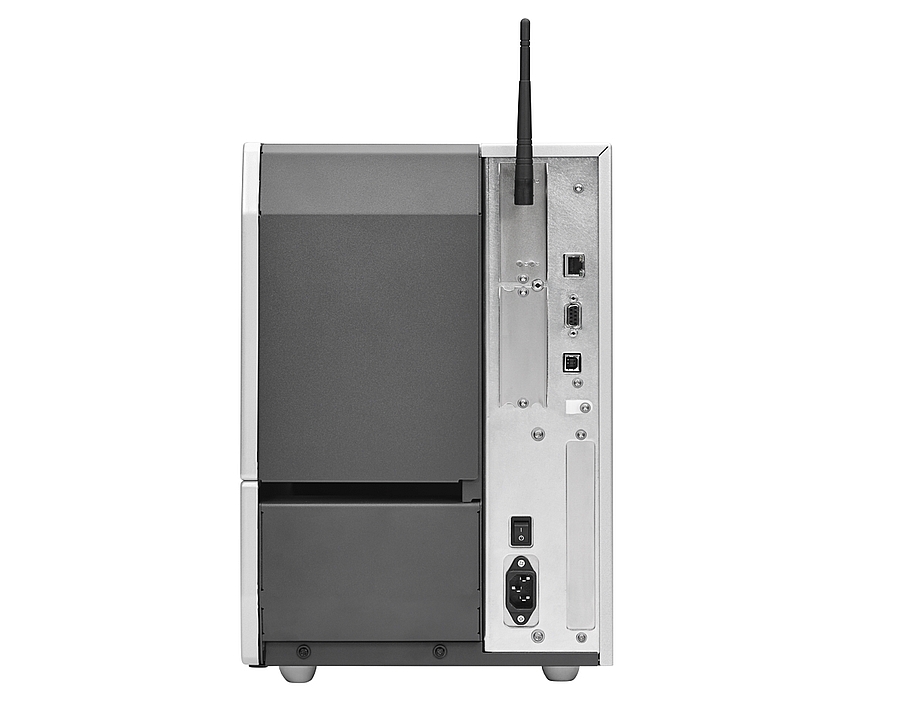

| Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet, and applicator interface. IPv6 option is available as an external dongle attached to a parallel port | |
| Media Handling | |

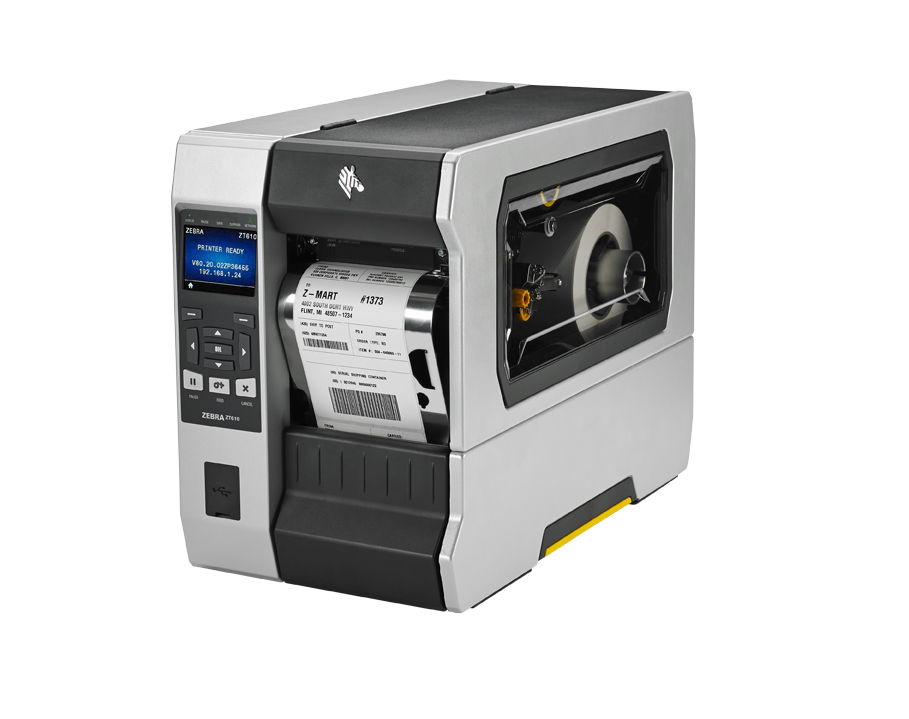

| Rewind: Internally rewinds a full roll of printed labels on 3" core, or peels and rewinds liner | |
| Cutter: Front-mount guillotine cutter and catch tray | |
| Ink-side in ribbon supply spindle | |

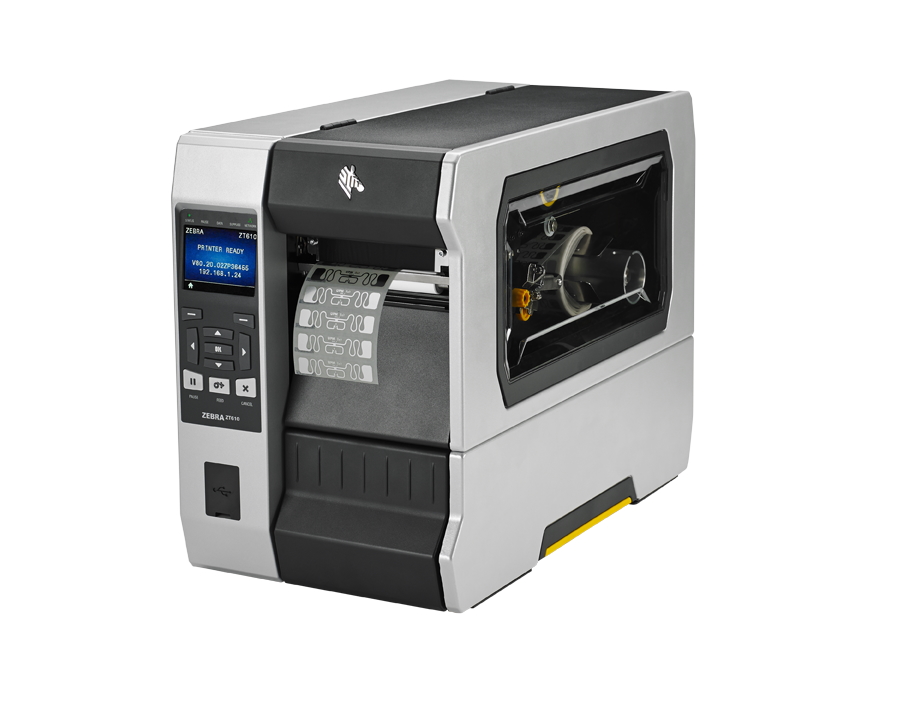

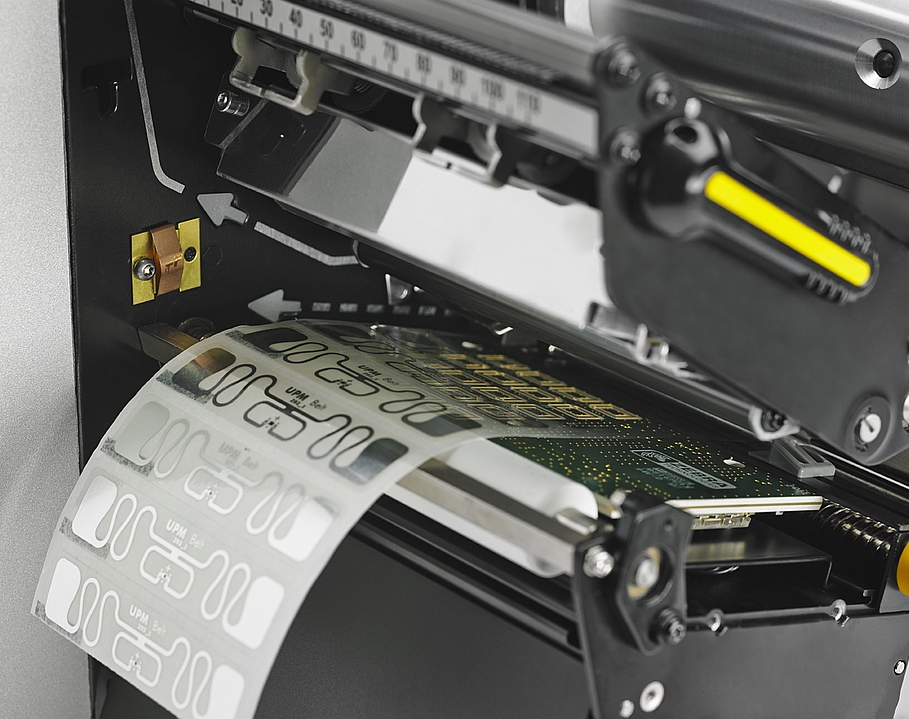

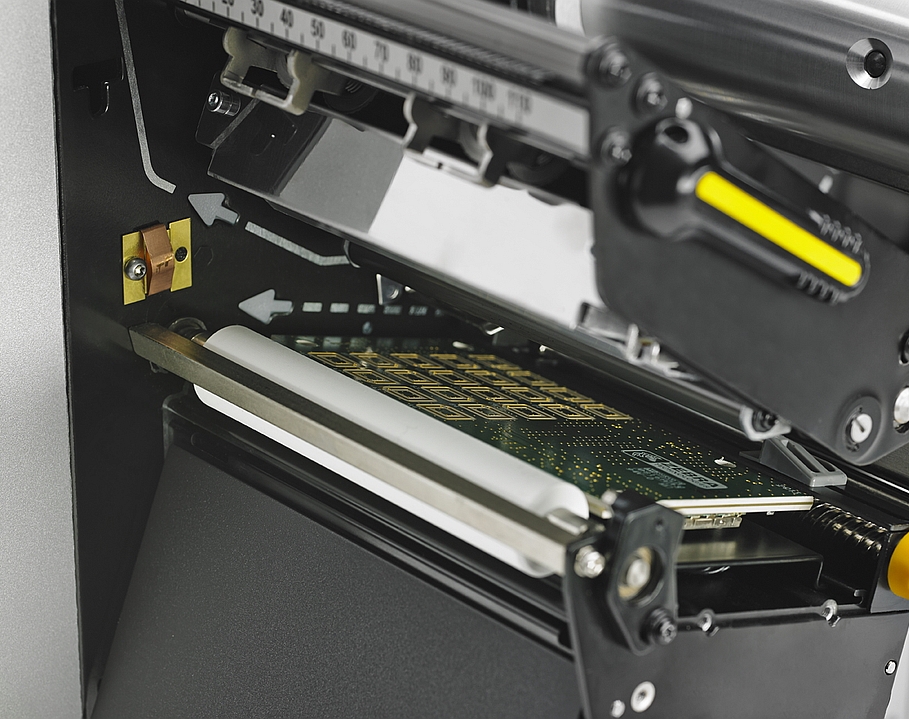

| RFID | |
| Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols | |
| Integrated RFID system is user-upgradable in the field and available on both 4 in. and 6 in. models | |
| Adaptive Encoding Technology automatically selects optimum encode settings | |
| Keyboard Display Unit | |
| ZKDU™ keyboard display units for stand-alone printing applications |
* Specifications subject to change without notice.
