Zebra ZT510 Industrial Label Printer

Taking the 105SLPlus to a new level with expanded performance and value

Zebra ZT510 Industrial Label Printer
Zebra ZT510 Printer Models and Prices Zebra ZT510 Ribbons and Labels Zebra ZT510 Specification

Designed to strike the ideal balance between performance and value, the ZT510 includes the core features you need in an industrial printer at a cost-effective price point. Building on the leagacy of its industry-leading predecessor, the Zebra 105SLPlus, the ZT510 provides a proven, durable design and construction while adding advanced management and monitoring capabilities. That means that you get 24/7 reliability to keep your operations running smoothly today, plus longevity and advanced functionality to power through every challenge in the years to come - all at an exceptional value.

Zebra's industrial printers are well-known for their durability, fast print speed, long life span and unparalleled reliability. The budget-friendly ZT510 carries on that legacy. The ZT510 features Zebra's world-renowned, high-quality print mechanisms and internal components to ensure flawless 24/7 performance, provide consistently outstanding quality and virtually eliminate costly downtime.

With an all-metal design, rugged construction and sealed dome buttons to prevent ingress of dust, dirt and moisture, the ZT510 is right at home in today's harshest manufacturing and warehouse environments. This durable workhorse is engineered to withstand years of continuous operation, plus extreme temperatures, debris, rough handling and more.

The ZT510 is ideal for cost-conscious companies, offering next-generation print performance at an exceptional value. It provides high duty cycle, rugged reliability, fast processing, advanced Link-OS™ capabilities and all the basic features you need - without the cost of those you don't. It's even ENERGY STAR® qualified to further protect your bottom line.

Featuring a variety of standard communication options including USB, Serial, Gigabit Ethernet and Bluetooth® LE, the ZT510 is easy to integrate into existing systems and connect to various networks. Optional Parallel, 802.11ac with Bluetooth® 4.0, USB Host and IPv6 are also available.

From the fast processor that enables quick throughput of even complex graphics to the optional USB Host card slot conveniently located on the back of the printer, the ZT510 optimises performance at every turn. Users can easily and accurately transition betwen 203 and 300 dpi printing for precise media handling and quiet operation. And dynamic QR codes provide additional "on-demand", web-based support to resolve printer errors quickly.

Zebra's highly intelligent, best-in-class Link-OS environment provides greater insight into the real-time status and functions of your printing process. With Link-OS, you can use a single cloud-based application to manage routing, firmware updates, printer configuration and more, on-site or remotely. And applications like Virtual Devices, Profile Manager, Near Field Communication (NFC) and Print Touch make it easy to integrate, update and contact support.



Ideal for these applications:

  • Manufacturing
    • Product identification labelling
    • Packaging labels
    • Receiving/putaway labelling
    • Work-in-process
  • Transportation & Logistics
    • Order picking/packing
    • Shipping/receiving
    • Cross-docking
    • Compliance labelling

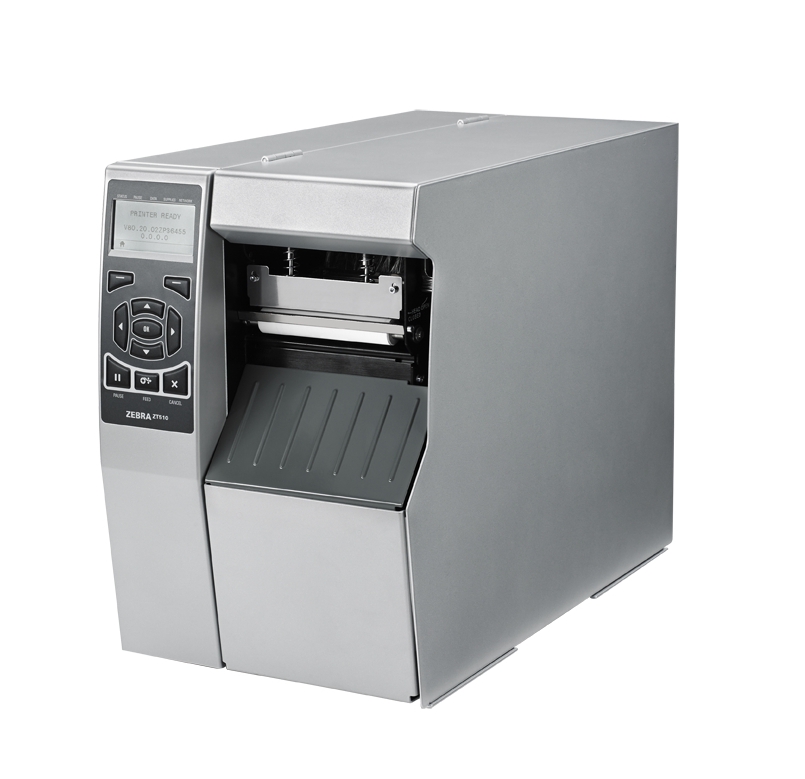

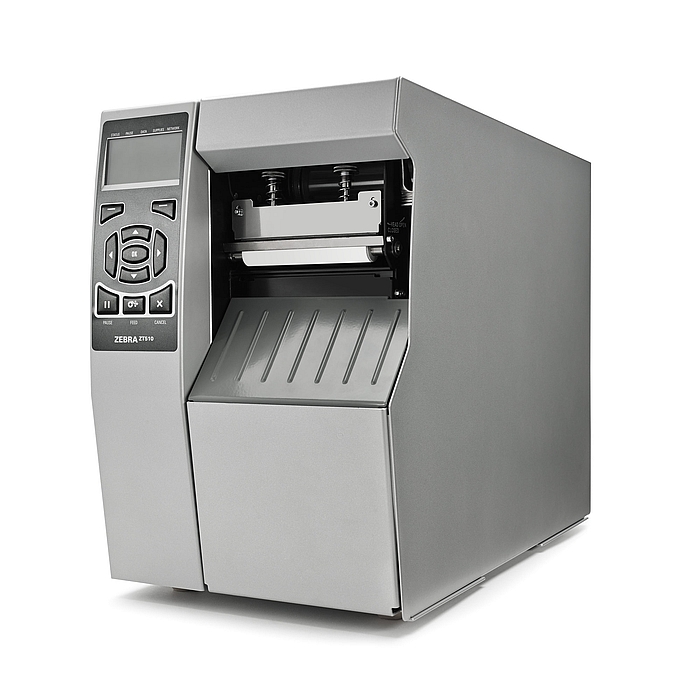

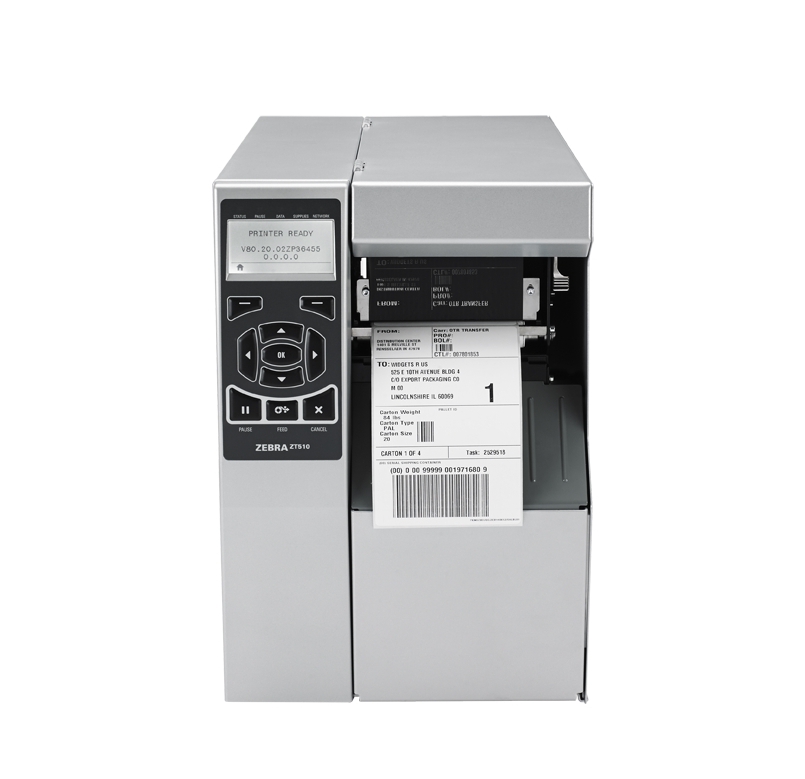

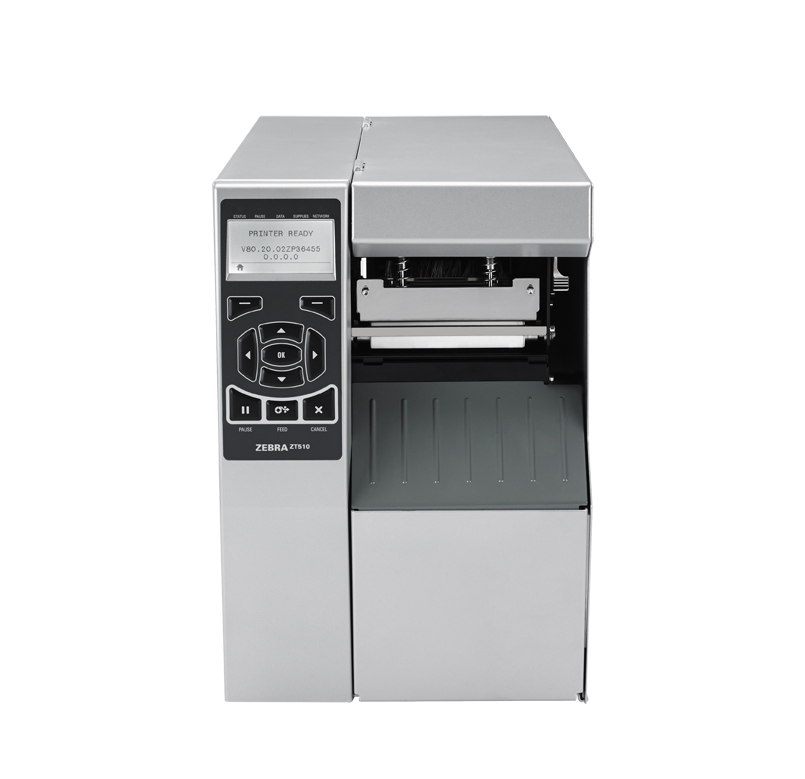

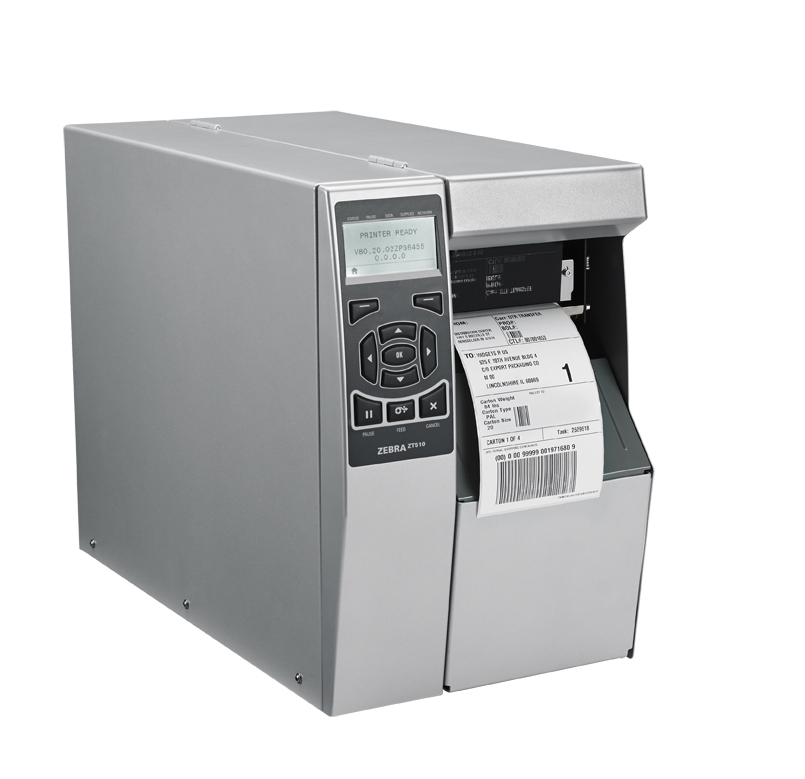

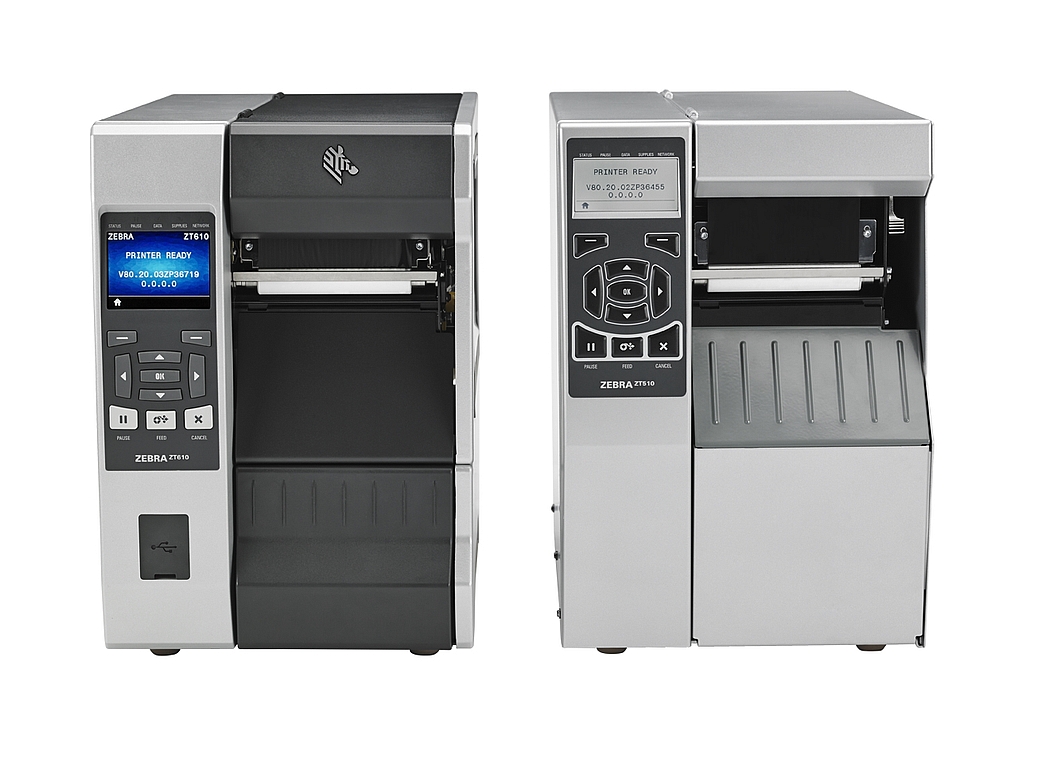

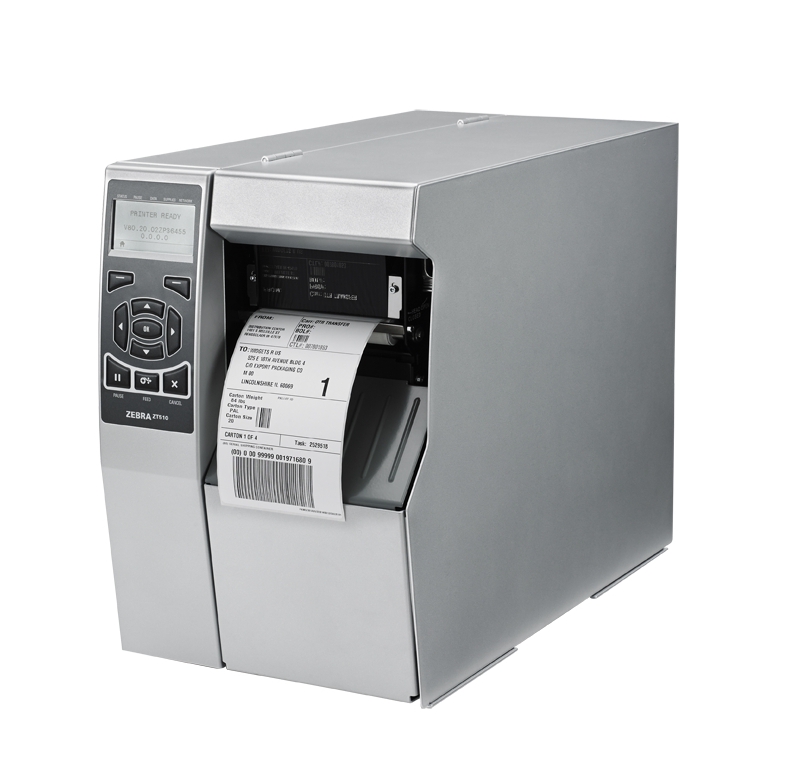

Zebra ZT510 Industrial Label Printer Left Zebra ZT510 Industrial Label Printer Left Zebra ZT510 Industrial Label Printer Left with Media Zebra ZT510 Industrial Label Printer Headon Zebra ZT510 Industrial Label Printer Headon with Media Zebra ZT510 Industrial Label Printer Right Zebra ZT510 Industrial Label Printer Right with Media Zebra ZT510 Industrial Label Printer Left with Cutter

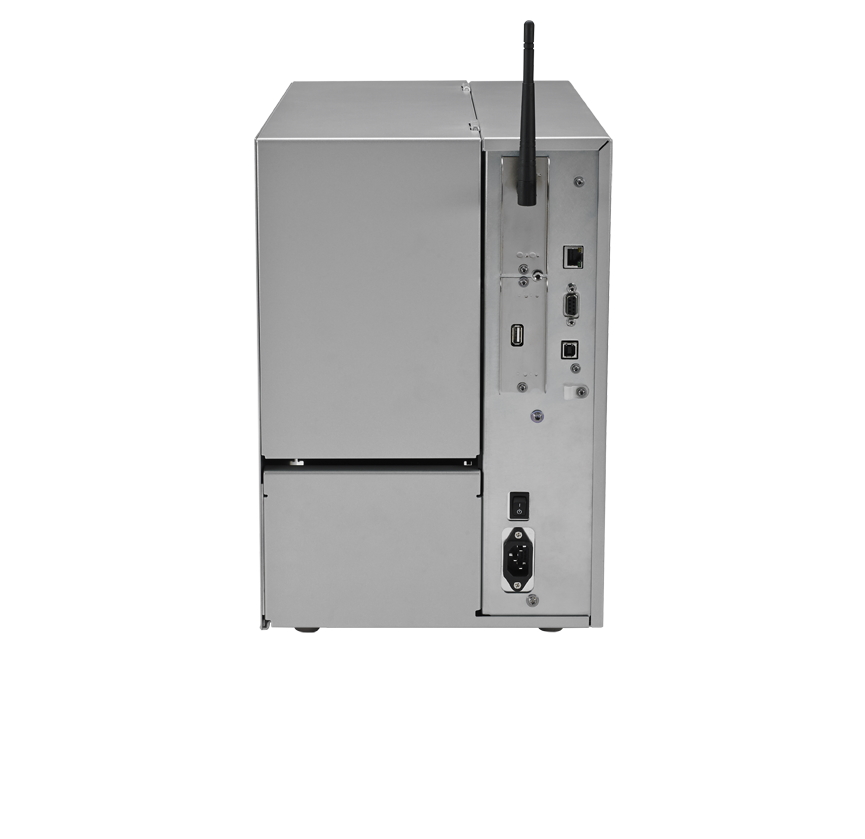

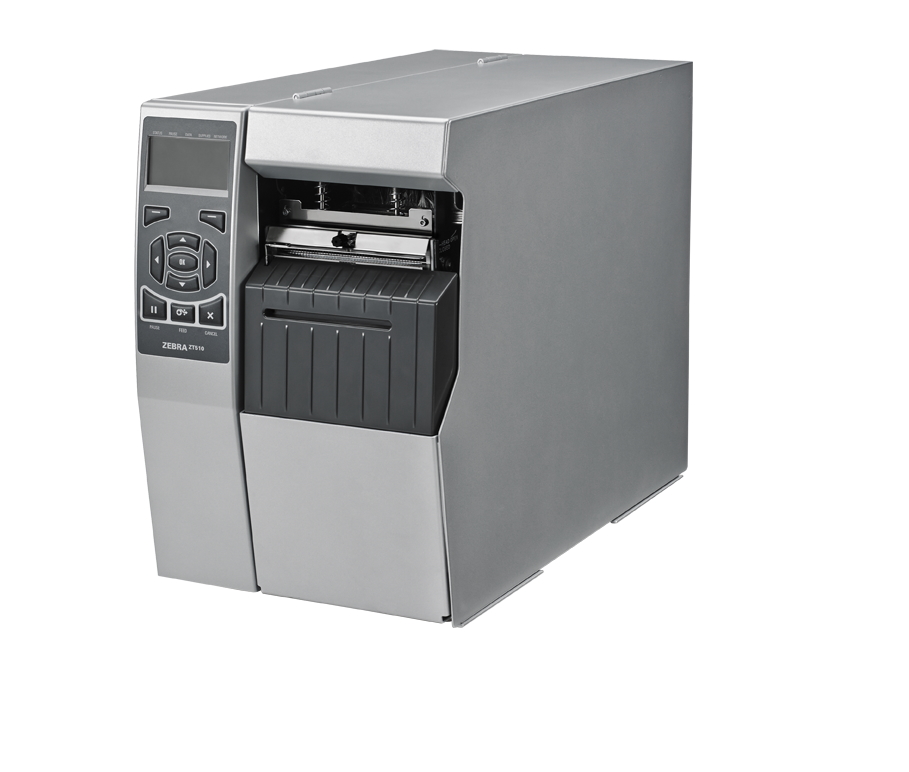

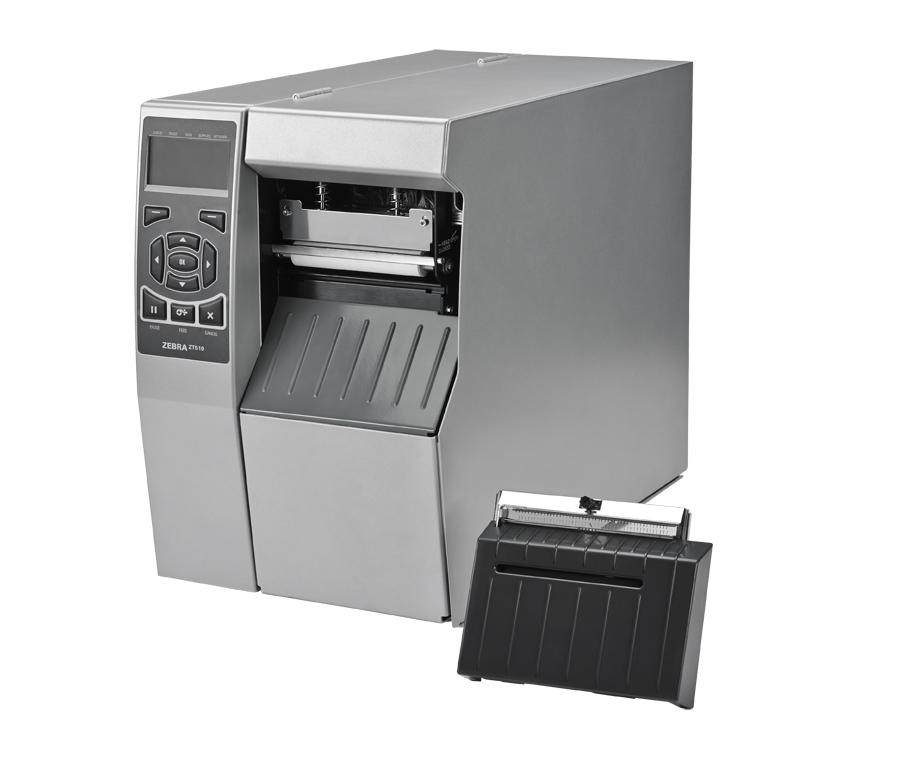

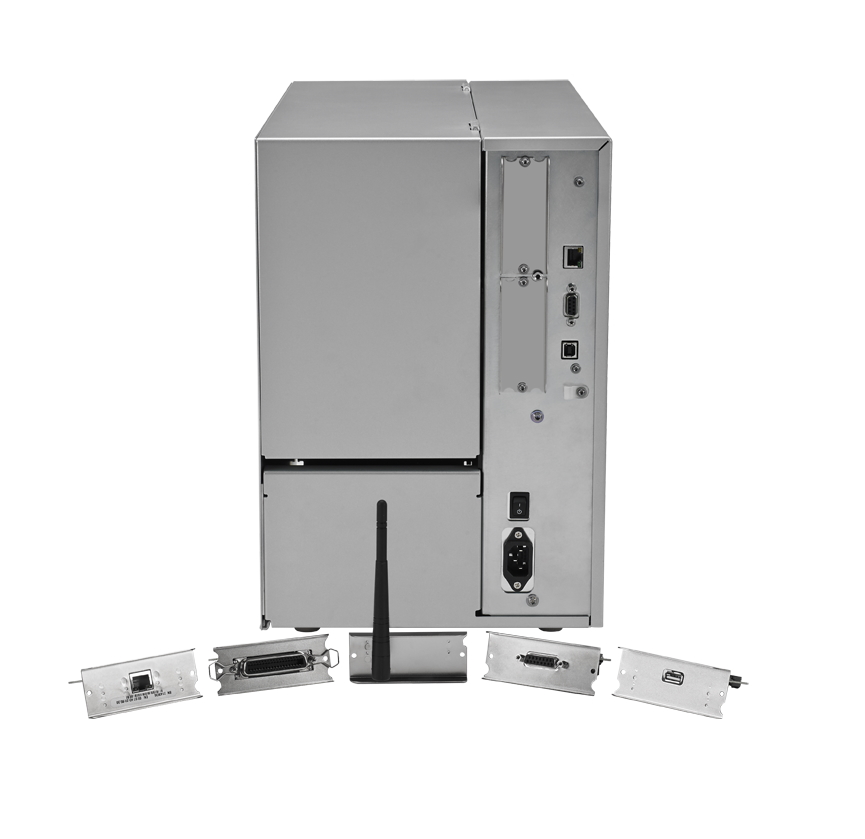

Zebra ZT510 Industrial Label Printer Left with Cutter Fitted Zebra ZT510 Industrial Label Printer Back with Communications Ports Zebra ZT510 Industrial Label Printer Back with WiFi and USB Port Zebra ZT510 Industrial Label Printer with Open Side Zebra ZT510 Industrial Label Printer with Open Backview Zebra ZT510 Industrial Label Printer with Open Cover and Ribbon and Media Zebra ZT510 Printhead Zebra ZT610 and ZT510 Industrial Printers



Zebra ZT510 Printer Models
Model Number Description Price*
ZT51042-T0E0000Z Zebra ZT510 Printer 203dpi TT/DT with Standard Features £1525.00
ZT51042-T2E0000Z Zebra ZT510 Printer 203dpi TT/DT with Standard Features and Rewind £1765.00
ZT51042-T0EC000Z Zebra ZT510 Printer 203dpi TT/DT with Standard Features and Wireless 802.11ac Card £1809.00
ZT51042-T1E0000Z Zebra ZT510 Printer 203dpi TT/DT with Standard Features and Cutter £1895.00

ZT51043-T0E0000Z Zebra ZT510 Printer 300dpi TT/DT with Standard Features £1895.00
ZT51043-T2E0000Z Zebra ZT510 Printer 300dpi TT/DT with Standard Features and Rewind £2155.00
ZT51043-T0EC000Z Zebra ZT510 Printer 300dpi TT/DT with Standard Features and Wireless 802.11ac Card £2189.00
ZT51043-T1E0000Z Zebra ZT510 Printer 300dpi TT/DT with Standard Features and Cutter £2289.00



ZT510 standard features are TT and DT, UK and EU leads, ZPL, RS232 Serial, USB, Ethernet (Gigabit), Bluetooth LE

*Please note all prices shown are exclusive of VAT

Request a Quotation





Alternative Models
Zebra ZT230 Zebra ZT231 Zebra ZT411 Zebra ZT421 Zebra ZT610
Zebra ZT230 Industrial Label Printer Zebra ZT231 Industrial Label Printer Zebra ZT411 Industrial Label Printer Zebra ZT421 Industrial Label Printer Zebra ZT610 Industrial Label Printer
From £589.00 From £656.00 From £1109.00 From £2095.00 From £1770.00



View All:
Zebra Industrial Printers
Zebra Printers



Zebra ZT510 Printer Parts
Type Part Number   Description Price*
Media Handling P1083347-036   Zebra Cutter Upgrade for ZT510 £432.70
  P1083347-021 Zebra Full Media Rewinder Kit for ZT510 Printer Zebra Full Media Rewinder for ZT510 £280.95
Printheads P1083347-005   Zebra 203 dpi Printhead for ZT510 £386.85
  P1083347-006 Zebra 300 dpi Printhead for ZT510 Printer Zebra 300 dpi Printhead for ZT510 £428.95
Connectivity P1083320-037C Zebra Wi-Fi Card: Wireless 802.11 ac for EMEA for ZT510, ZT610, ZT620 Printers Zebra Wi-Fi Card: Wireless 802.11 ac for EMEA for ZT510, ZT610, ZT620 £310.95
  P1083320-039   Zebra Ethernet Internal PrintServer for ZT510 £269.15
  P1083320-040 Zebra Parallel Port Card for ZT510, ZT610, ZT620 Printers Zebra Parallel Port Card for ZT510, ZT610, ZT620 £71.30
Other P1083347-012   Zebra Platen Roller for ZT510 £48.10



Zebra ZT510 Printer Supplies
Part Number Description Price*
  Ribbons
02300BK11045 Zebra 2300 Economy Wax Ribbon, Black, 110mm x 450M, box of 12 for ZT510 £114.95
02100BK11045 Zebra 2100 Special Wax Ribbon, Black, 110mm x 450M, box of 12 for ZT510 £132.95
03200BK11045 Zebra 3200 Premium Wax/Resin Ribbon, Black, 110mm x 450M, box of 6 for ZT510 £119.95
  Labels
76180 Zebra Z-Perform 1000T TT Economy paper Label 102mm x 152mm, Perm Adhesive, 950 p/r, box of 4 for ZT510 £62.95
76059 Zebra Z-Select 2000T TT Premium paper Label 102mm x 64mm, Perm Adhesive, 2220 p/r, box of 4 for ZT510 £91.95
76060 Zebra Z-Select 2000T TT Premium paper Label 102mm x 152mm, Perm Adhesive, 950 p/r, box of 4 for ZT510 £91.95



Zebra OneCare Service
Part Number Description Price*
Z1AE-ZT51-3C0 Zebra OneCare, Essential, Purchased within 30 days of Device, ZT510, 3 Years, Comprehensive Cover £285.00
Z1AE-ZT51-5C0 Zebra OneCare, Essential, Purchased within 30 days of Device, ZT510, 5 Years, Comprehensive Cover £577.00

*Please note that all prices shown are exclusive of VAT



Zebra ZT510 Printer Full Specification
Standard Features Print Methods: Thermal transfer and direct thermal printing
  Construction: Metal frame
  Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
  Communications: USB, Serial, Gigabit Ethernet, Bluetooth® LE
  Backlit, multi-line display including an intuitive menu, easy-to-use keypad and password protection
Printer Specifications Resolution
  203 dpi/8 dots per mm
  300 dpi/12 dots per mm (optional)
  Memory
  512 MB RAM memory
  2 GB on-board linear Flash memory
  Maximum Print Width
  4.09 in./104 mm
  Maximum Print Speed
  12 ips/305 mm per second
  Media Sensors
  Dual media sensors: transmissive and reflective
  Maximum Continuous Print Length
  203 dpi: 150 in./3810 mm
  300 dpi: 100 in./2540 mm
Media Characteristics Media Width
  0.79 in./20 mm to 4.5 in./114 mm
  Maximum Media Roll Size
  8 in./203 mm O.D. on a 3 in./76 mm I.D. core
  Thickness
  0.003 in./0.076 mm to 0.012 in./0.305 mm
  Media Types
  Continuous, die-cut, notch, black-mark
Ribbon Characteristics Standard Length
  1476 ft./ 450 M
  Width
  2.00 in./51 mm to 4.33 in./110 mm
  Core
  1.0 in./25.4 mm I.D.
Operating Characteristics Environmental
  Operating Temperature:
  Thermal transfer: 40℉ to 104℉/ 5℃ to 40℃
  Direct thermal: 32℉ to 104℉/ 0℃ to 40℃
  Operating Humidity: 20% to 85% non-condensing
  Storage/Transportation Temperature: -22℉ to 140℉/ -30℃ to 60℃
  Storage Humidity: 20% to 85% non-condensing
  Electrical
  Auto-detectable (PFC Compliant) 90-265VAC, 47-63Hz, rated at 250 Watts
  ENERGY STAR qualified
  Agency Approvals
  IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN61000-3-3
  cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro
Physical Characteristics Closed
  Length: 20.17 in./512.3 mm
  Width: 10.56 in./268.2 mm
  Height: 15.58 in./395.68 mm
  Weight: 50 lbs/22.7 kg
Software Tools Link-OS Solutions
  Document Design - Quickly design a customised print solution using your business data and Zebra's intuitive plug-and-print design tools.
  Device Integration - Zebra offers apps and products designed to help you integrate Zebra devices into your existing systems.
  Device Management - Manage your print operations locally and globally with Zebra's suite of device management tools.
  Developer Tools - Provides you the tools you need to create your own apps, including documentation, source code, programming languages, templates and more.
  Web View
  Connect and control Zebra barcode printers using ZPL II via the printer's web interface using common web browsers.
  Alert
  Printers equipped with ZebraNet print servers will notify you via any email-enabled, wired or wireless device to minimise downtime.
Firmware ZBI 2.0™ - Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more.
  ZPL and ZPL II® - Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers.
  XML-enabled Printing - Allows XML communications for barcode label printing.
Barcode Symbologies Linear Barcodes: Code 11, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
  2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec
Fonts and Graphics 16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts
  Asian and other international scalable and smooth bitmapped fonts
  Unicode™: For multi-language printing
  Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats
  IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control
  Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0
  32 MB user available DRAM
  512 MB user available on-board Flash
Options and Accessories Connectivity
  Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet. IPv6 option is available as an external dongle attached to a parallel port
  Media Handling
  Rewind: Internally rewinds a full roll of printed labels on 3" core, or peels and rewinds liner
  Cutter: Front-mount guillotine cutter and catch tray
  Keyboard Display Unit
  ZKDU™ keyboard display units for stand-alone printing applications

* Specifications subject to change without notice.
