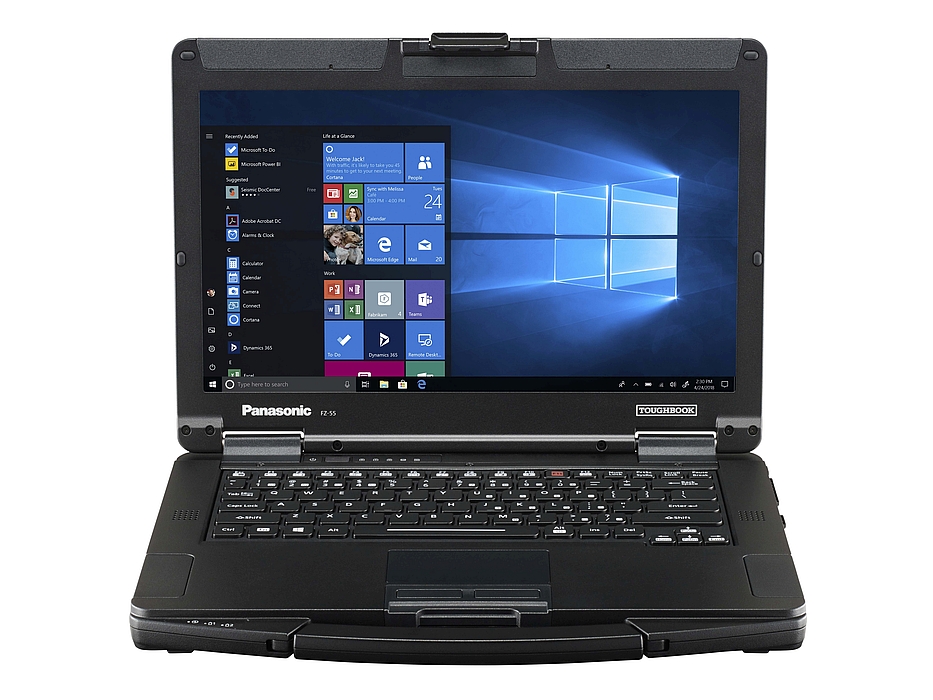

Panasonic Toughbook FZ-55 Full HD with Touchscreen Model Mk1
14" Sunlight Viewable Semi-Rugged Windows 10 Pro Notebook
| FZ-55 Mk1 Full HD Touchscreen Models and Prices | FZ-55 Mk1 Full HD Touchscreen Model Specification | FZ-55 Accessories |
TOUGHBOOK 55 with Windows 10 Pro, magnesium chassis, flexible configurations and universal bay is the most versatile 14" semi-rugged Toughbook ever built, but doesn't compromise on durability, with a unique 'honeycomb' design for improved strength and splash resistant design.
In terms of flexibility, the TOUGHBOOK 55 is equally outstanding. It offers a huge array of flexible configuration options, making it easier for customers to have exactly the device they want.
Breaking the mould for semi-rugged notebooks, the TOUGHBOOK 55 is only around 32mm thin. Equipped with Windows 10 Pro and the new 8th generation Intel® Core™ i5 vPro™ processor which delivers faster computing power, the TOUGHBOOK 55 sets a new benchmark.
- Intel® Core™ i5-8365U vPro™ or i7-8665U vPro™ Processor
- Windows 10 Pro
- 14" Full-HD Active Matrix, capacitive Touch Screen, 1.000cd/m2 brightness
- Lightweight and slim design (approx. 2.22 kg and 32.8mm)
- 8GB RAM and 256GB SSD as standard
- 2x USB 3.1, 1x USB 3.1 type C PD, 1x HDMI, 1x LAN and micro SDCX
- Front and Rear Expansion Slot
- TOUGHBOOK Universal Bay
- Long battery life of up to 19 hours (MobileMark 2014)
- Dedicated Global Positioning and 4G LTE optional
- -20 °C to +60 °C operating temperature

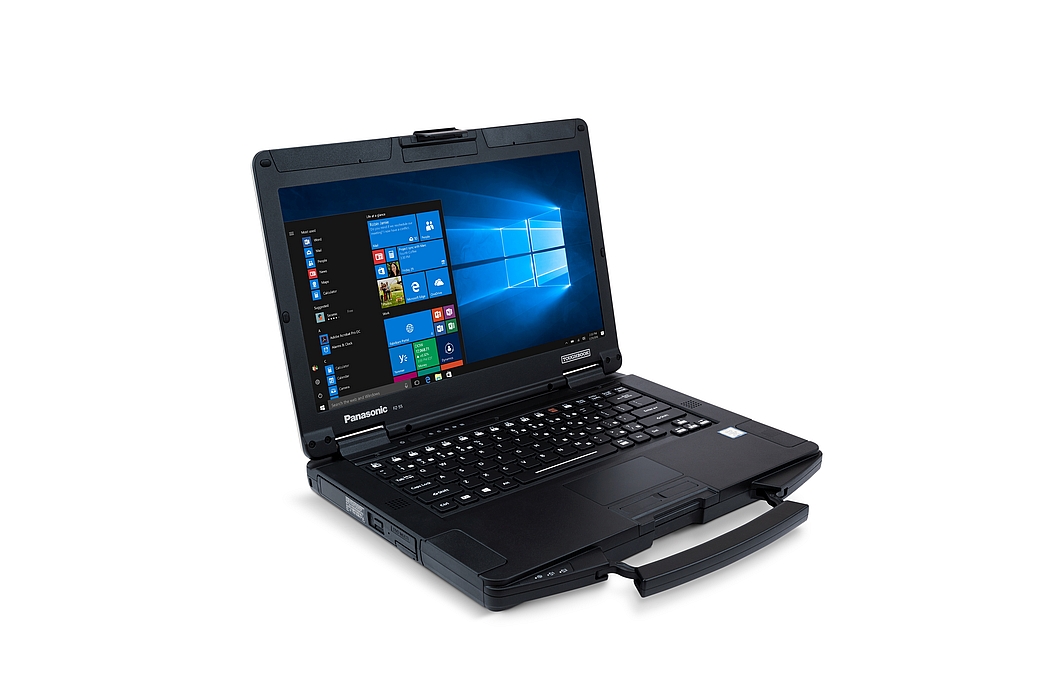

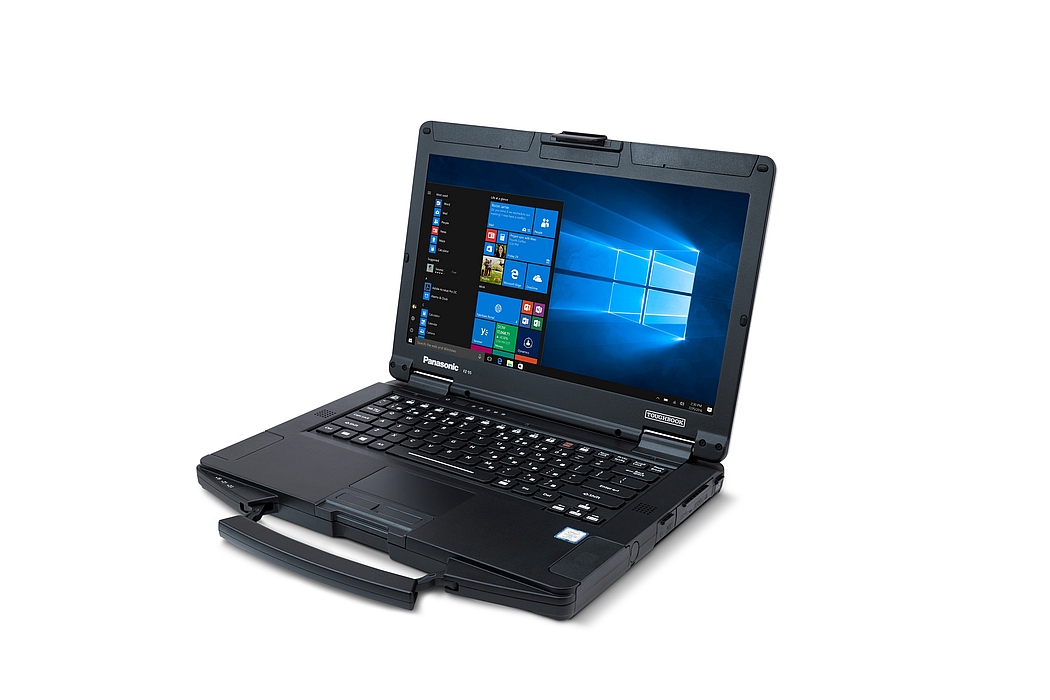

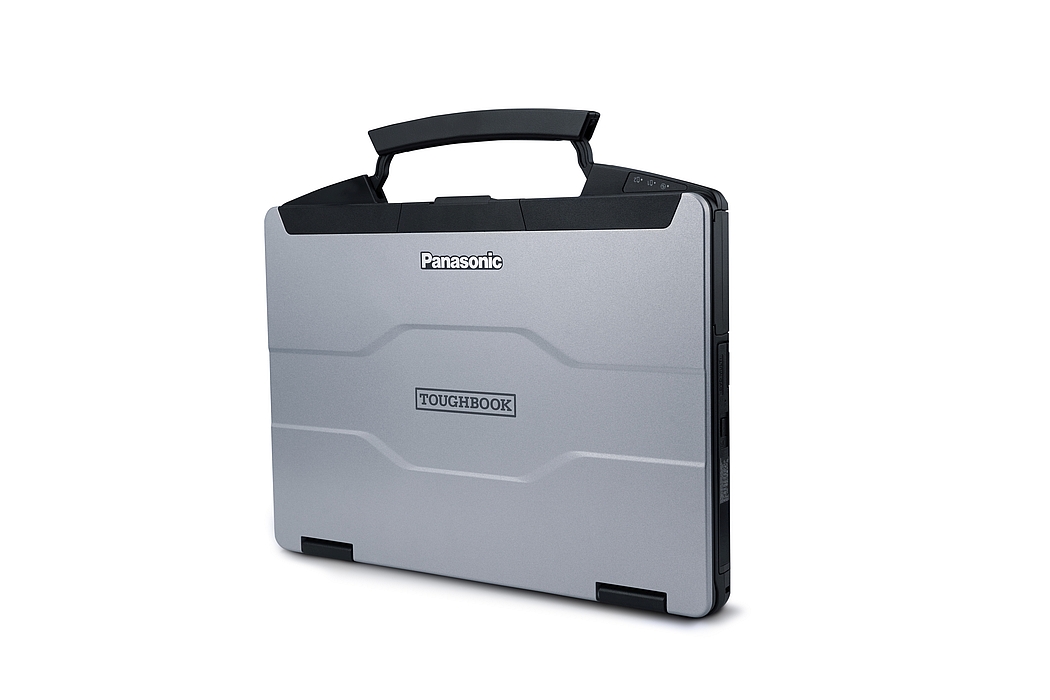

- Robust honeycomb-style magnesium casing with carry handle
- IP53 Ingress Protection*
- Withstands drops from a height of 91cm*
- Shock and vibration protected for vehicle docking
* Designed for MIL-STD810H. Test by an independent third party lab following 2nd half of 2019
| Model Number | Description | Price* |
| FZ-55C311ETE | Toughbook FZ-55 Full HD Touchscreen Mk1, i5-8365U vPro 1.6GHz, 32GB RAM, 256GB SSD, Front Camera and 4 Mic, VGA, True Serial, 4th USB, DVD | £1995.00 |
| Option | Price* |
| 64GB RAM | £385.00 |
| 500GB SSD | £136.00 |
| 1TB SSD | £235.00 |
*Please note that all prices shown are exclusive of VAT
| Part Number | Description | Price* | |
| FZ-VCN551U |
 |
Panasonic VGA, Serial, USB 3.1 I/O Module for FZ-55 | £209.79 |
| FZ-VCN552U |
 |
Panasonic VGA, Serial, 2nd GLAN I/O Module for FZ-55 | £215.09 |
| FZ-VCN553U |
 |
Panasonic VGA, Serial, Rugged USB 2.0 I/O Module for FZ-55 | £293.45 |
| FZ-VFP551U |
 |
Panasonic Finger Print Reader for FZ-55 Front Expansion Area | £101.45 |
| FZ-VNF551U |
 |
Panasonic Contactless Smart Card Reader for FZ-55 Front Expansion Area | £122.00 |
| FZ-VSC551U |
 |
Panasonic Smart Card Reader for FZ-55 Front Expansion Area | £61.65 |
| FZ-VSC552U |
 |
Panasonic Smart Card Reader for FZ-55 Universal Bay | £99.95 |
| FZ-VDM551U |
 |
Panasonic DVD Multi Drive for FZ-55 Universal Bay | £107.35 |
| FZ-VBD551U |
 |
Panasonic Blu-Ray Drive for FZ-55 Universal Bay | £314.65 |
| FZ-VSD55121U |
 |
Panasonic 2nd SSD 256GB for FZ-55 Universal Bay | £184.95 |
| FZ-VSD55151U |
|
Panasonic 2nd SSD 512GB for FZ-55 Universal Bay | £358.30 |
| FZ-VSD551T1U |
|
Panasonic 2nd SSD 1TB for FZ-55 Universal Bay | £705.00 |
| Refurbished Panasonic Toughbook FZ-55 Full HD with Touchscreen Mk1 | Refurbished Panasonic Toughbook FZ-55 HD Mk1 | Panasonic Toughbook FZ-55 HD Mk2 | Panasonic Toughbook FZ-55 HD Mk3 | Panasonic Toughbook FZ-55 Full HD with Touchscreen Mk3 |
 |
|
 |
 |
|
| Semi-rugged 14" 1920x1080 i5-8365U / i7-8665U Windows 10 / 11 Pro notebook | Semi-rugged 14" 1366x768 i5-8365U / i7-8665U Windows 10 / 11 Pro notebook | Semi-rugged 14" 1366x768 i5-1145G7 / i7-1185G7 Windows 10 / 11 Pro notebook | Semi-rugged 14" 1366x768 i5-1345U / i7-1370P Windows 11 Pro notebook | Semi-rugged 14" 1920x1080 i5-1345U / i7-1370P Windows 11 Pro notebook |
| From £1575.00 | From £1249.00 | From £1575.00 | From £1675.00 | From £2115.00 |
View All:
Panasonic Toughbooks and Toughpads
Refurbished Panasonic Toughbooks and Tablets
| Part Number | Description | Price* | |
| CF-AA5713A2E |
 |
Panasonic Spare Power Supply Unit for FZ-55 | £79.75 |
| FZ-VZSU1HU |
 |
Panasonic Li-Ion Battery Pack for FZ-55 | £175.15 |
| FZ-VCB551W |
 |
Panasonic 4-Bay Battery Charger without AC Adapter for FZ-55 | £210.25 |
| FZ-VCB551E |
 |
Panasonic 4-Bay Battery Charger including UK AC Adapter for FZ-55 | £290.00 |
| CF-VEB541AU |
 |
Panasonic Desktop Port Replicator for CF-54 and FZ-55 | £395.75 |
| FZ-VEB551U |
 |
Panasonic Desktop Port Replicator for FZ-55 | £420.00 |
| FZ-VEB55U | Panasonic Desktop Port Replicator Base Unit (requires FZ-VAD551U) for FZ-55 | £331.10 | |
| FZ-VAD551U | Panasonic Desktop Port Replicator Attachment (requires FZ-VEB55U) for FZ-55 | £23.38 | |
| CF-LND1224A |
 |
Lind Car Charger (24V) for FZ-55 | £216.35 |
| FZ-VNP551U |
 |
Panasonic Capacitive Stylus Pen for FZ-55 | £19.95 |
| PCPE-INFBPK1 |
 |
Infocase Backpack for Toughbooks | £139.25 |
| PCPE-INF55AO |
 |
Infocase Always-On Case for FZ-55 | £128.40 |
| PCPE-INFUVA1 |
 |
Infocase User Harness for FZ-55 | £39.75 |
| CF-VNT005U | Panasonic Tether for FZ-55 | £9.00 | |
| CF-VPF29U | Panasonic LCD Protective Film for CF-54/FZ-55 | £50.50 | |
| T5D-03485 | Microsoft Office Home and Business 2021 (Word, Excel, Powerpoint, Outlook) All Languages for Windows 11 and Windows 10 | £208.65 | |
| 269-17186 | Microsoft Office Professional 2021 (As Home and Business 2019, plus Access and Publisher) All Languages for Windows 11 and Windows 10 | £331.20 |
| Part Number | Description | Price* |
| PCPE-GJ54V01 | Gamber-Johnson Vehicle Docking Station with Electronics, No RF, Vesa 75mm for CF-54/FZ-55 | £776.00 |
| PCPE-GJ54V02 | Gamber-Johnson Vehicle Docking Station with Electronics, Dual RF, Vesa 75mm for CF-54/FZ-55 | £849.00 |
*Please note that all prices shown are exclusive of VAT
| Mobile Computing Platform | Intel® Core™ i5-8365U vPro™ processor (1.6GHz up to 4.1GHz, 6MB Intel® Smart Cache) |
| Intel® Core™ i7-8665U vPro™ processor (1.9GHz up to 4.8GHz, 8MB Intel® Smart Cache) | |
| Operating System | Windows 10 Pro 64-bit |
| RAM | 8GB RAM (max. 64GB) |
| Graphic Chip | Intel® UHD Graphics 620 (AMD Radeon Pro WX in TOUGHBOOK Universal Bay optional) |
| Storage | 256GB SSD |
| LCD | 14" Active Matrix (TFT) colour LCD 1920 x 1080 pixels (Full-HD), capacitive 10 finger Touch Screen |
| Sound | WAVE and MIDI playback, Intel® High Definition Audio subsystem support |
| Enhanced Voice Recognition* | 4 Microphones (included in Front Camera) |
| LAN | IEEE 802.3 10Base-T / IEEE 802.3u 100BASE-TX / IEEE 802.3ab 1000BASE-T (2nd GLAN optional) |
| Front Camera* | 2 MP with IR / privacy shutter (Windows Hello compliant) |
| Bluetooth™ | 5.0 |
| Wireless LAN | Intel® Dual Band Wireless-AC 9560 |
| Mobile Broadband* | 4G LTE, EM7455 |
| Global Positioning* | u-blox NEO-M8N (supports GPS, GLONASS, Beidou, Galileo) |

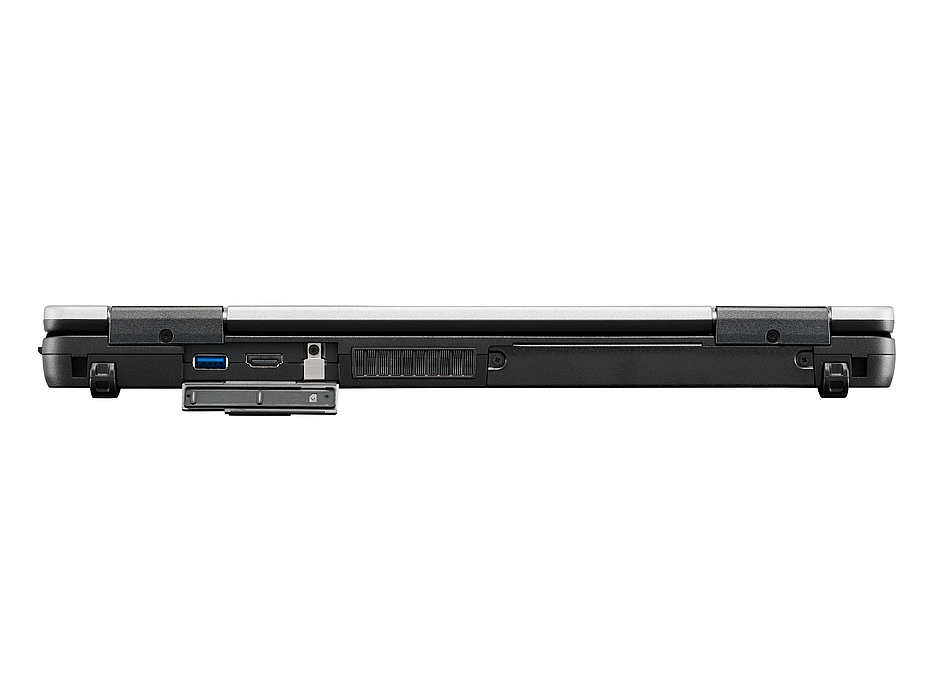

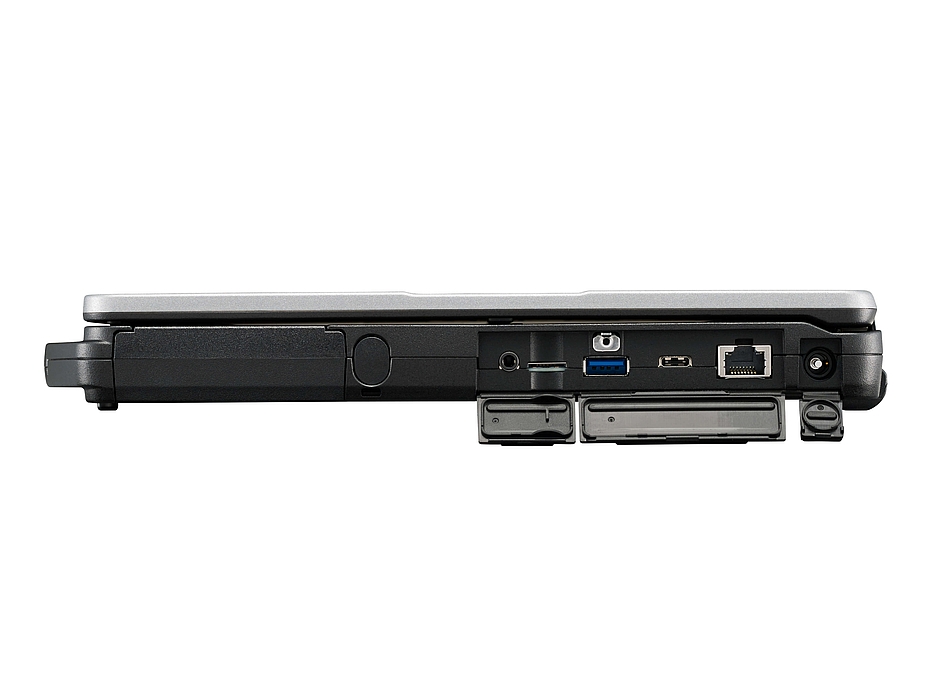

| Interfaces | USB 3.1 x2 |
| USB 3.1 type C PD x1 | |
| Micro SDXC Memory Card x1 | |
| HDMI x1 | |
| Headset x1 | |
| DC In x1 | |
| Port Replicator x1 | |
| Dual Pass Through Connector* x1 | |
| TOUGHBOOK Universal Bay** | Discrete GPU (AMD Radeon ProWX) |
| 2nd SSD | |
| Smart Card Reader | |
| DVD Multi Drive | |
| Blu Ray Drive | |
| Front Expansion Slot** | 2nd Battery |
| Fingerprint Reader | |
| Contactless Smart Card Reader (HF-RFID) | |
| Smart Card Reader | |
| Rear Expansion Slot*** | VGA + True Serial + 4th USB 3.1 |
| VGA + True Serial + 2nd native GLAN | |
| VGA + True Serial + Rugged USB 2.0 | |
| Power | AC Adapter Input: 100V - 240V AC, 50Hz/ 60Hz, Output: 15.6V DC, 7.05A |
| Battery Lithium-Ion 10.8V, 6500mAh (typ.), 6300mAh (min.) | |
| Battery Life Approx. 19 hours (Mobile Mark™ 2014) | |
| Approx. 38 hours with 2nd battery (Mobile Mark™ 2014) | |
| Power Management Standby function, ACPI BIOS | |
| Hot Swap* With 2nd Battery | |
| Dimensions (WxHxD) | 345mm x 272mm x 32.8mm |
| Weight | Approx. 2.22 kg |
| Testing Standards*** | Drop Resistance 91cm |
| Dust Resistance IP5x | |
| Water Resistance IPx3 | |
| Operating Temperature -20°C to +60°C | |
| Standard Configuration | FZ-55mk1 (Full-HD with touchscreen), 8GB RAM, 256GB SSD, battery pack |
| Included in the box | Power Supply, Power Cord, capacitive pen, Display cleaning cloth and User Manual |
* Optional
** Exclusive option, pre-configured or accessory
*** Exclusive option, pre-configured
**** Designed for MIL-STD810H. Test by an independent third party lab following 2nd half of 2019
