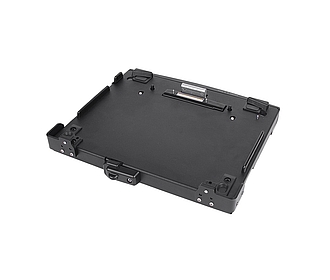

Gamber-Johnson Vehicle Dock for Toughbook CF-20 and FZ-G2
Model Numbers PCPE-GJ201V07/8

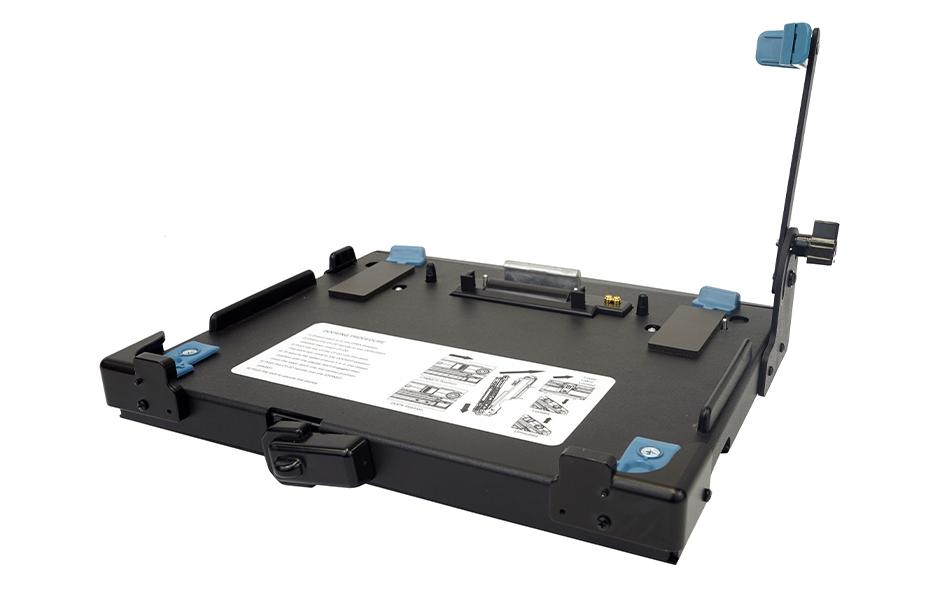

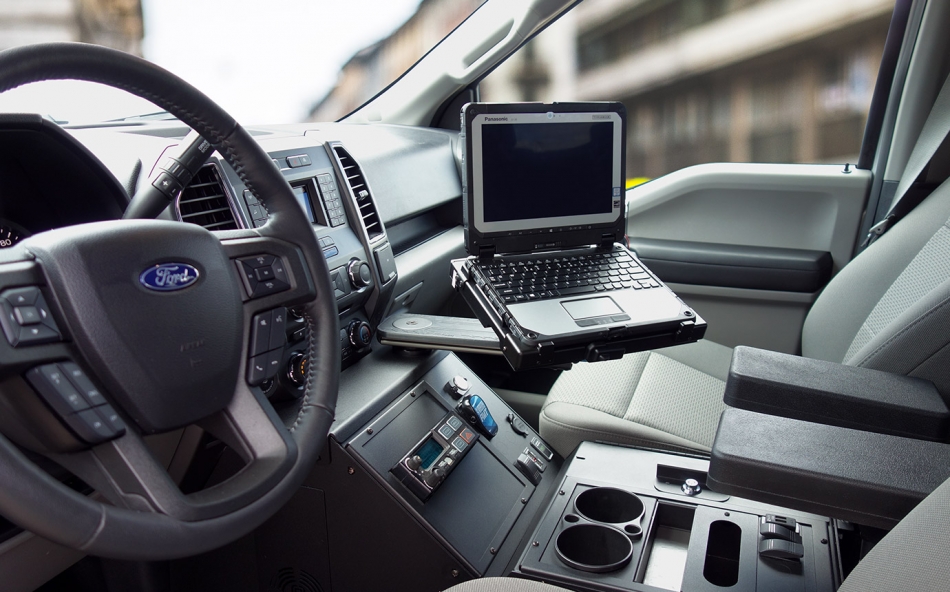

Designed for the Panasonic Toughbook® 20 and G2 tablets with attachable keyboards. Position the computer in tablet or laptop mode and remove the computer to use outside your mobile office. The docking station offers full port replication to support a mobile office environment and the keyed lock provides additional security to protect your investment.
Features:
- Compatible with the Panasonic Toughbook 20 and G2 2-in-1 tablet computers with attachable keyboards
- Panasonic Certified electronics
- Spring-loaded cover protects docking connector when computer is not docked, automatically retracts for superior protection

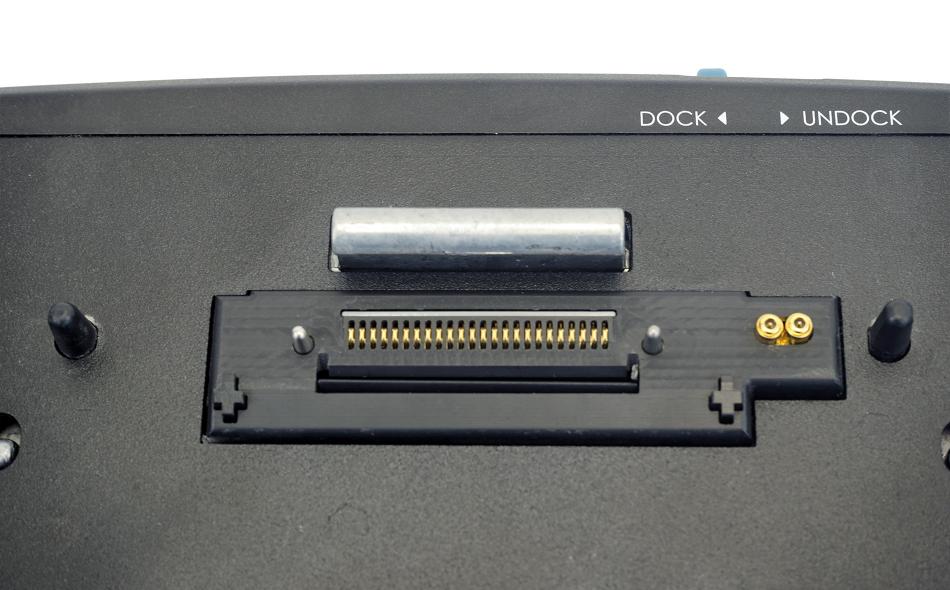

- Special docking connector pin protection – helps to prevent accidental pin damage by providing additional protection around and in between each docking pin

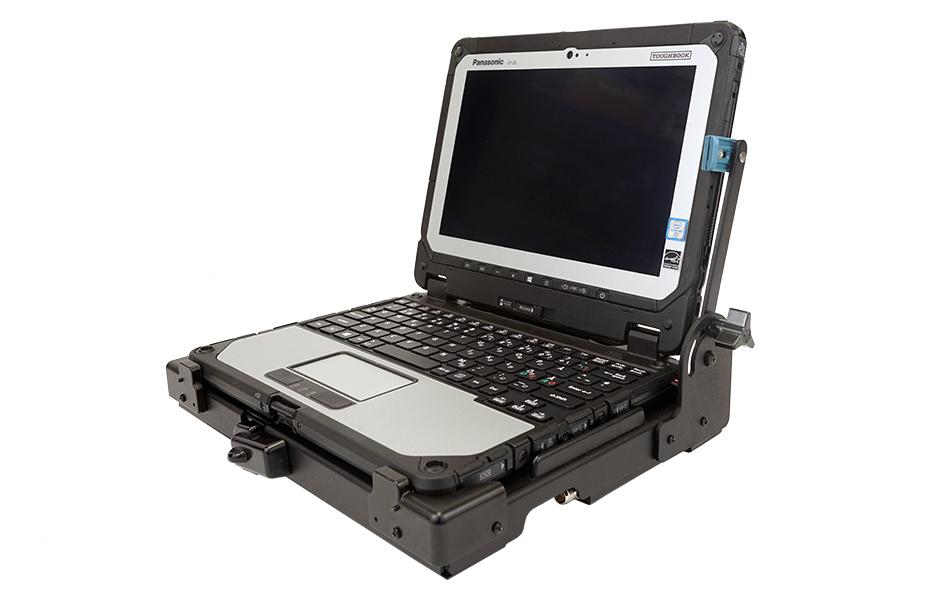

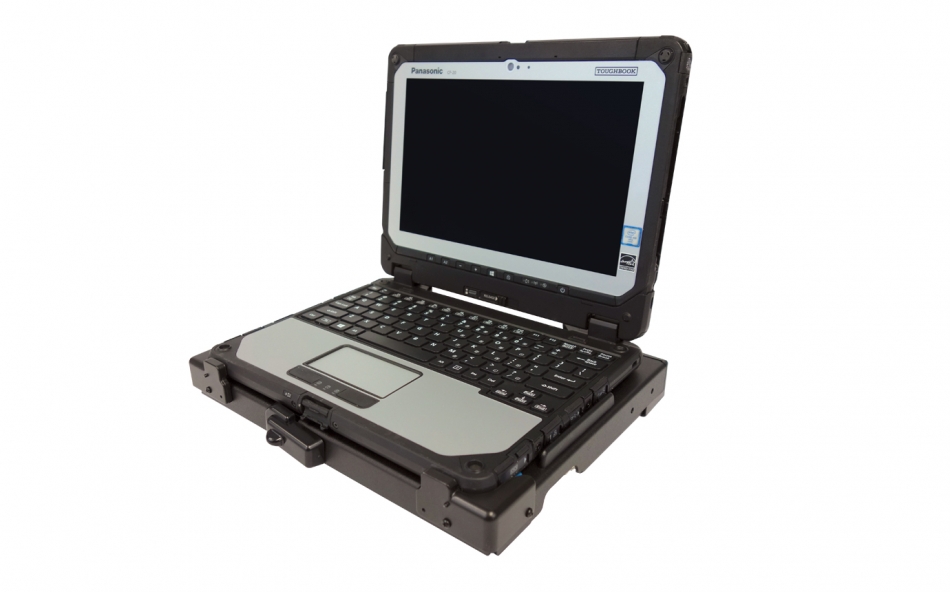

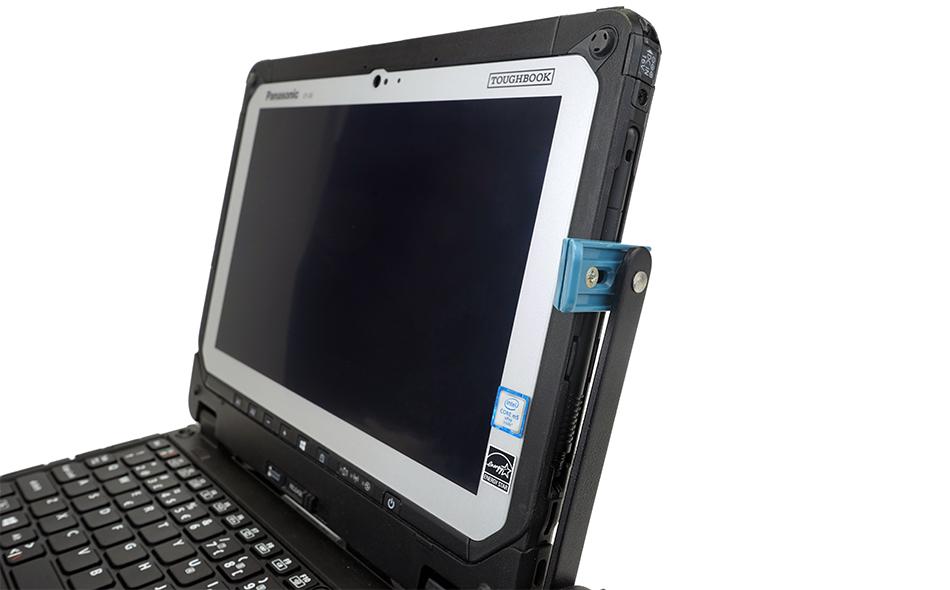

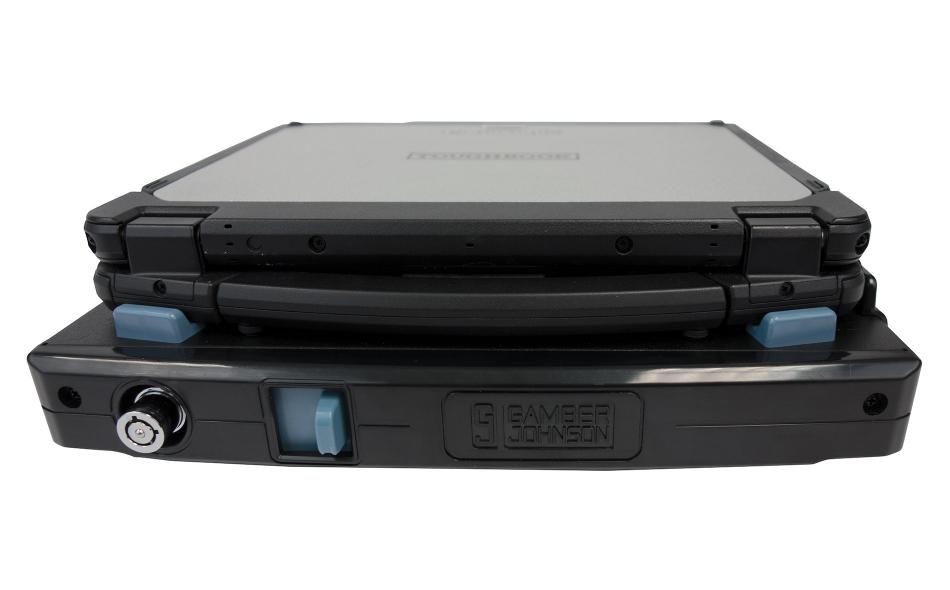

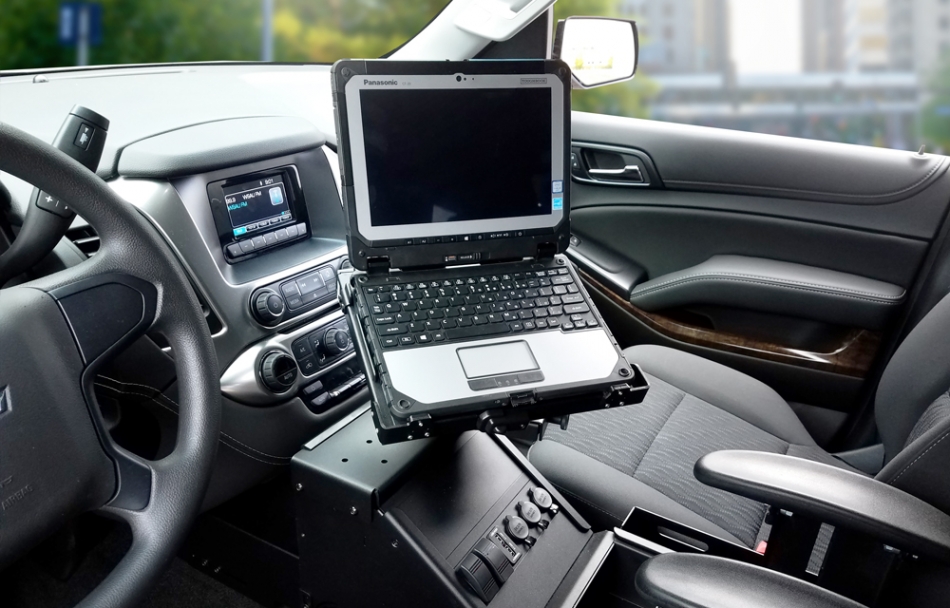

- Can be used in either laptop or tablet orientation
- Composite/aluminum design for reduced weight and durability
- Designed with rounded edges to enhance personal safety

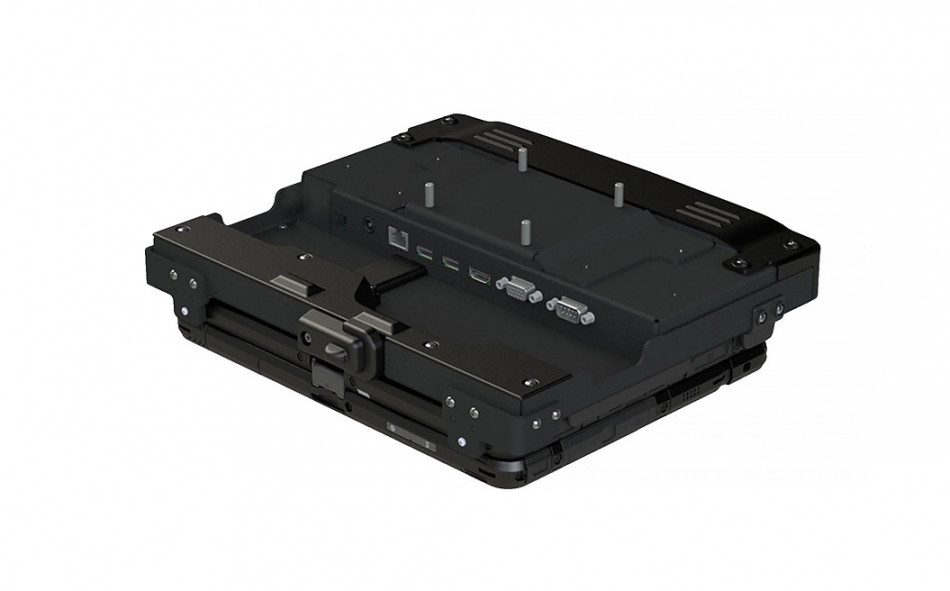

- Rear-facing I/O ports; integrated cable strain relief and cable management system
- Access to all notebook control buttons and ports while the notebook is docked

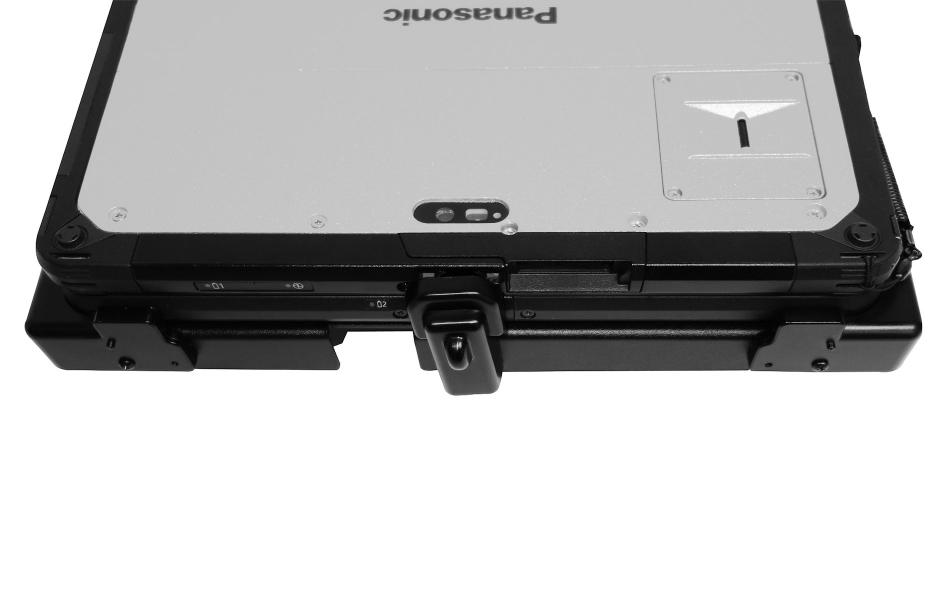

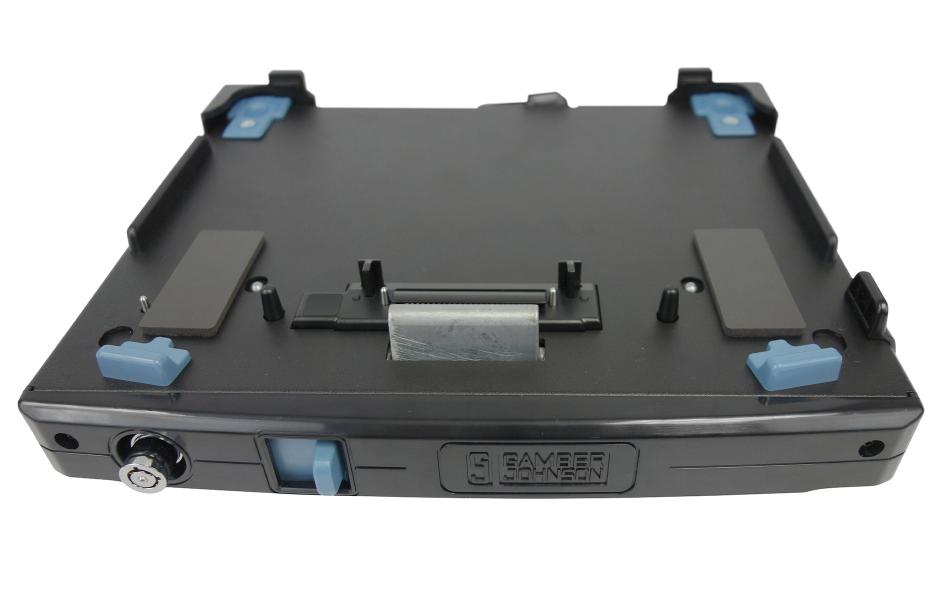

- Keyed lock for theft deterrence. NOTE: The lock secures the Toughbook 20 keyboard and tablet, but secures only the keyboard for the G2
- VESA 75 mm mounting pattern
- 1-year limited warranty
| Model Number | Description | Price* |
| PCPE-GJ20V07 | Gamber-Johnson Vehicle Dock without Antenna Pass-Through for CF-20 and FZ-G2 with attachable keyboard | £875.00 |

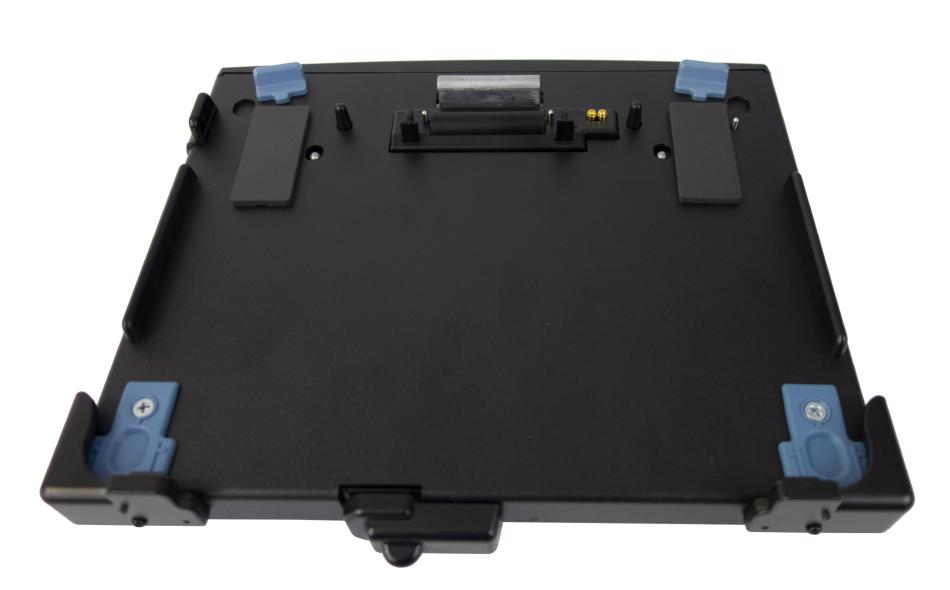

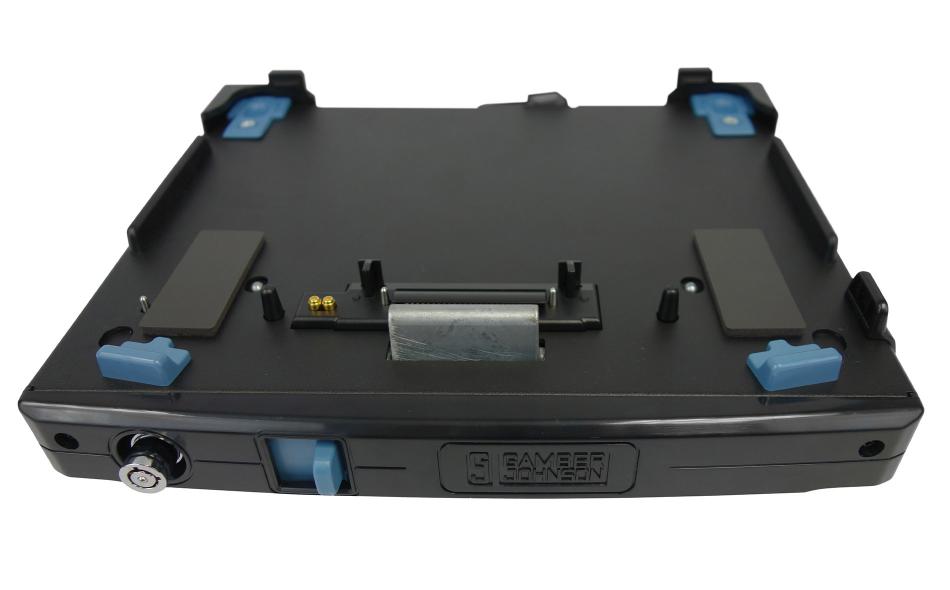

| PCPE-GJ20V08 | Gamber-Johnson Vehicle Dock with Antenna Pass-Through for CF-20 and FZ-G2 with attachable keyboard | £882.00 |
*Please note all prices shown are exclusive of VAT

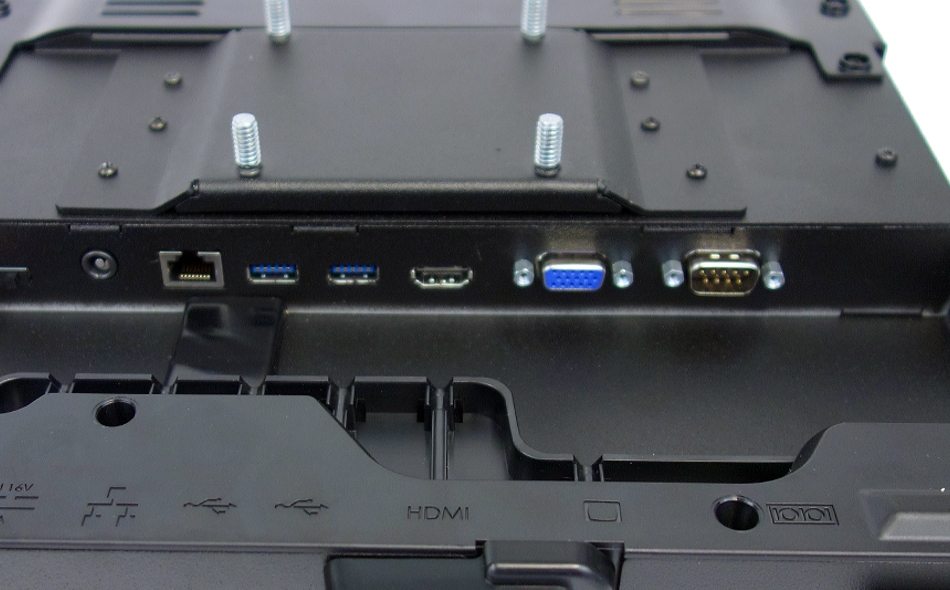

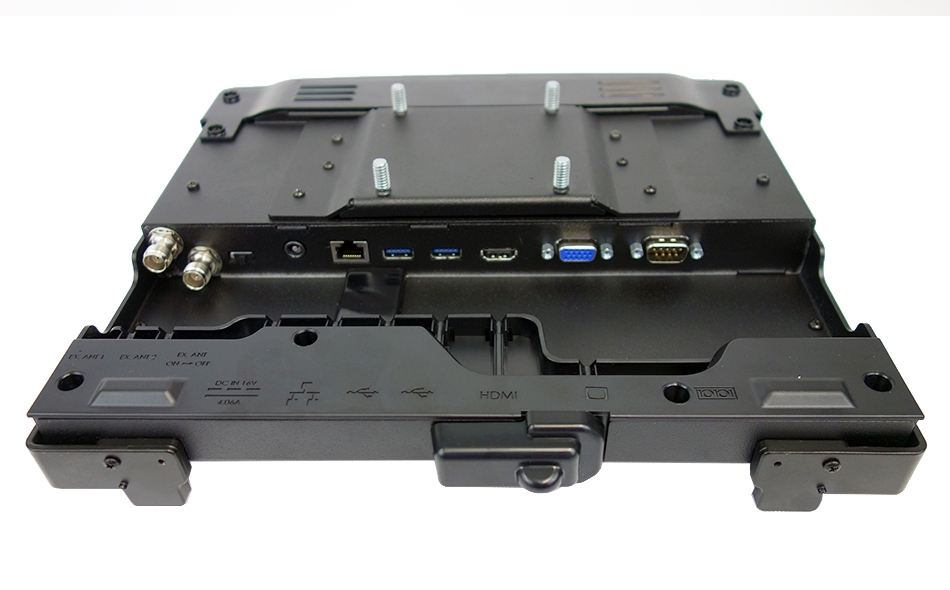

| Port Replicators | Panasonic certified electronics |
| (2) USB 3.0 - 9 pin | |
| (1) HDMI - 19 pin | |
| (1) Serial - D-sub 9-pin | |
| (1) Ethernet - RJ45 | |
| (1) VGA D-sub -15-pin | |
| Antenna switch | |

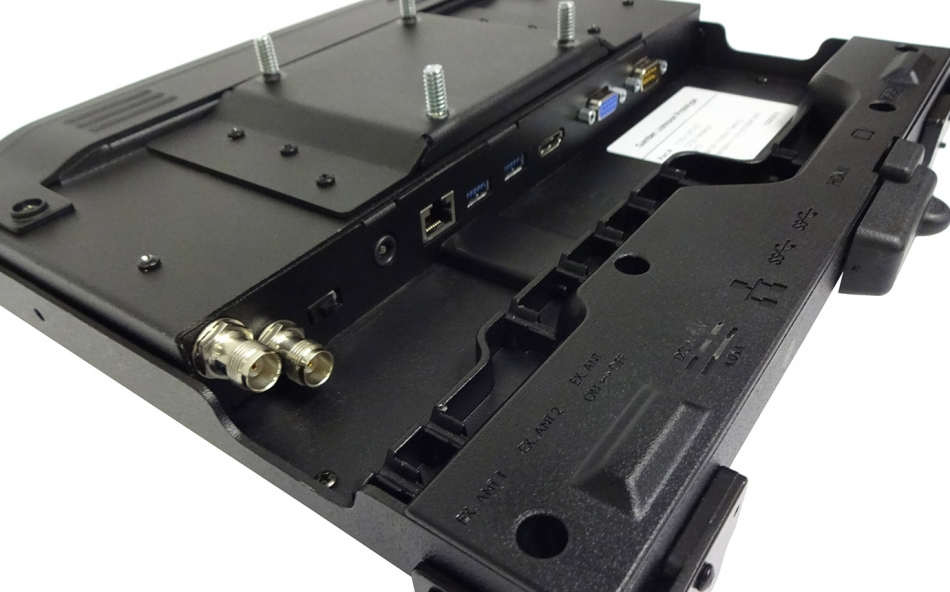

| Dual RF Pass-Through (optional) - TNC | |
| Power supply input - DC 15.6V-16V | |
| Testing & Certificates | Toughbook Certified |
| MIL-STD 810G Shock/Vibration Tested | |
| MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational) | |
| Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms | |
| RoHS, FCC, CE, C-TICK, UKCA | |
| SAE J1455 Shock Crash Hazard Test | |
| Weight | 5 lbs / 2.27 kg |
| Height, Width, Depth | PCPE-GJ20V07: 2.5 in / 6.35 cm x 11.6 in / 29.46 cm x 12.1 in / 30.73 cm |
| PCPE-GJ20V08: 2.5 in / 6.35 cm x 11.6 in / 29.46 cm x 10.1 in / 25.65 cm | |
| Kit Includes | Panasonic Toughbook 20/G2 Docking Station |
| Mounting Hardware | |
| Installation Instructions | |
| Warranty | 1-Year Limited Warranty |
These Gamber-Johnson vehicle docks are compatible with the following Toughbooks:
Panasonic Toughbook CF-20 Mk1
Panasonic Toughbook CF-20 Mk2
Panasonic Toughbook FZ-G2 Mk1
Panasonic Toughbook FZ-G2 Mk2
Panasonic Toughbook FZ-G2 Mk3
