Zebra ZT230 Industrial Label Printer

Designed for ease of use, versatility and outstanding value

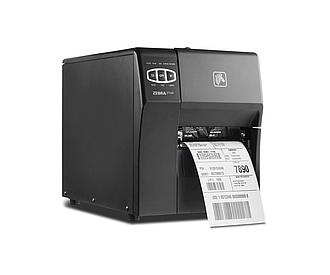

Zebra ZT230 industrial label printer with media
Zebra ZT230 Printer Models and Prices Zebra ZT230 Ribbons and Labels Zebra ZT230 Printer Specification

Zebra incorporated extensive customer feedback, as well as the legacy of its Stripe® and S4M™ printers, to create the new ZT200™ series printers, which feature space-saving design, effortless setup, intuitive user operation, and ease of service and maintenance.

Whether you are adopting barcode technology for the first time or upgrading existing printer models, the ZT200 series is the right choice for a variety of labeling applications. This innovative new printer provides many user benefits.

The ZT200 series offers a streamlined design and smaller footprint that takes up less physical space than the Stripe and S4M models. ZT200 series printers require minimal operator training and benefit from tool-less standard component maintenance and a durable design to minimize service. Your IT staff will appreciate the backwards compatibility, since it allows for new printers to be up and running with minimal time and effort.

The ZT200 series has been designed for ease of use, versatility and outstanding value.

Space-Saving Design
  • Compact footprint and streamlined design fits easily in confined areas where space is at a premium
  • Space saving design with unique bi-fold door (requires 4 in./102 mm of opening space) fits easily into tight spaces maximizing work space
Fast Installation and Integration
  • Ideal replacement printer for previous generation Stripe and S4M models
  • Multiple connectivity options: parallel, 10/100 Ethernet, 802.11a/b/g/n wireless
  • Icon-based status LEDs provide immediate and easily visible printer status
Intuitive, Effortless Media Loading
  • Side-loading design eliminates complicated threading of supplies
  • Color-coded cues give even first-time users visual guidance for loading ribbon and media
  • Illuminated moveable sensor is visible through the media for trouble-free sensor-position adjustment
Print Quality
  • Engineered for greater print precision with fine-tuned adjustments
  • Crisp, clean text and barcodes—even on narrow media
Zebra Reliability and Durability
  • Built for light industrial and commercial environments
  • Energy Star®-compliant
  • Drive system designed for optimal performance, with minimal maintenance required
Simplified Serviceability
  • Easy, tool-less platen and printhead removal enable simple cleaning and replacement
  • Simple interchangeable connectivity options enable rapid printer changes and upgrade
  • Only three common tools needed for basic service



Ideal for these applications:

  • Manufacturing
    • Work-in-process
    • Product ID/serial numbers
    • Packaging labels
    • Receiving/putaway labeling
  • Transportation & Logistics
    • Order picking/packing
    • Shipping/receiving
    • Cross-docking
    • Compliance labeling
  • Healthcare
    • Orders
    • Specimen labels
    • Asset tracking
    • Unit-of-use labeling
  • Retail
    • Shelf-labeling
    • Shipping
    • Returns
    • Item tags
  • Government
    • Asset tracking
    • Logistics labeling
    • Warehousing



Zebra ZT230 industrial label printer head-on Zebra ZT230 industrial label printer head-on with media Zebra ZT230 industrial label printer left with media Zebra ZT230 industrial printer left Zebra ZT230 printer open Zebra ZT230 industrial printer right Zebra ZT230 industrial printer display Zebra ZT230 industrial printer ports



Zebra ZT230 Printer Models
Model Number Description Price*
ZT23042-T0E200FZ Zebra ZT230 Printer 203dpi Thermal Transfer with Standard Features and 10/100 Ethernet £589.00
ZT23043-T0E200FZ Zebra ZT230 Printer 300dpi Thermal Transfer with Standard Features and 10/100 Ethernet £609.00



ZT200 Series standard features include UK and Euro Power Cords, USB 2.0 & Serial ports, ZPL and EPL (203 dpi only) firmware, 128MB RAM memory (4MB User Available), 128MB Flash memory (32MB User Available), Fixed transmissive and adjustable reflective sensors.

*Please note all prices shown are exclusive of VAT

Request a Quotation





Zebra ZT220 and ZT230 Features Comparison
ZT220 ZT230
Zebra’s most affordable tabletop printer S4M replacement that easily integrates into your environment
Durable high-impact polymer case for long-lasting use Rugged all-metal case for long-lasting use
300 m/984’ ribbon capacity 450 m/1476’ ribbon capacity for increased uptime and fewer ribbon changes
Simple single-use three-button user interface Graphical user interface for easy printer setup and control
Ideally suited for barcode labeling applications where minimal format or printer setting changes are required Ideally suited for barcode labeling applications requiring more frequent format or printer setting changes through use of the intuitive user interface



Alternative Models
Zebra ZT111 Zebra ZT231 Zebra ZT231 RFID Zebra ZT411 Zebra ZT421
Zebra ZT111 industrial label printer Zebra ZT231 industrial label printer Zebra ZT231 RFID Industrial Printer Zebra ZT411 industrial label printer Zebra ZT421 industrial label printer
From £525.00 From £656.00 From £1846.00 From £1064.00 From £1952.00



View All:
Zebra Industrial Printers
Zebra Printers



Zebra ZT200 Series Printer Accessories
Type Part Number   Description Price*
Media Handling P1037974-008   Zebra Peel Upgrade Kit for ZT220, ZT230 £169.95
  P1037974-027   Zebra Media Hanger for ZT111, ZT210, ZT211, ZT220, ZT230, ZT231 £25.95
  P1037974-028   Zebra Platen Roller for ZT111, ZT210, ZT211, ZT220, ZT230, ZT231 £44.95
  P1037974-037   Zebra Catch Tray for Cutter for ZT111, ZT210, ZT211, ZT220, ZT230, ZT231 £25.95
  P1037974-069   Zebra Cutter Upgrade Kit for ZT220, ZT230 £382.95
Print Heads P1037974-010 Zebra Printhead 203 dpi for ZT200 Series Printers Zebra Printhead 203 dpi for ZT220, ZT230 £279.95
  P1037974-011 Zebra Printhead 300 dpi for ZT200 Series Printers Zebra Printhead 300 dpi for ZT220, ZT230 £369.95
  P1037974-005   Zebra Printhead Conversion Kit 203 dpi to 300 dpi for ZT220, ZT230 £369.95
  P1037974-006 Zebra Printhead Conversion Kit 300 dpi to 203 dpi for ZT200 Series Printers Zebra Printhead Conversion Kit 300 dpi to 203 dpi for ZT220, ZT230 £289.95
Connectivity P1037974-001 Zebra Internal 10/100 Ethernet PrintServer for ZT200 Series Printers Zebra Internal 10/100 Ethernet PrintServer for ZT220, ZT230 £262.95
  P1037974-002 Zebra Parallel Port Card for ZT200 Series Printers Zebra Parallel Port Card for ZT220, ZT230 £69.95
  P1058930-097C Zebra Wireless Card 802.11n for ZT200 Series Printers Zebra ZebraNet Wireless Card 802.11n for ZT220, ZT230 £343.80
Other P1037974-004 Zebra Real Time Clock (RTC) for ZT200 Series Printers Zebra Real Time Clock (RTC) for ZT220, ZT230 £134.95
  44902   Zebra Print Head Cleaning Film, 106mm wide, pack of 3 £14.55
  47362   Zebra Print Head Cleaning Foam Tip Swabs, pack of 6 £11.95



Zebra ZT200 Series Printer Supplies
Part Number Description Price*
  Ribbons
02300BK11045 Zebra 2300 Economy Wax Ribbon, Black, 110mm x 450M, box of 12 for ZT200 Series £114.95
03200BK11045 Zebra 3200 Premium Wax/Resin Ribbon, Black, 110mm x 450M, box of 6 for ZT200 Series £119.95
02300BK11030 Zebra 2300 Economy Wax Ribbon, Black, 110mm x 300M, box of 12 for ZT200 Series £82.95
  Labels
76180 Zebra Z-Perform 1000T TT Economy paper Label 102mm x 152mm, Perm Adhesive, 950 p/r, box of 4 for ZT200 Series £62.95
76059 Zebra Z-Select 2000T TT Premium paper Label 102mm x 64mm, Perm Adhesive, 2220 p/r, box of 4 for ZT200 Series £91.95
76060 Zebra Z-Select 2000T TT Premium paper Label 102mm x 152mm, Perm Adhesive, 950 p/r, box of 4 for ZT200 Series £91.95

*Please note that all prices shown are exclusive of VAT



Zebra ZT230 Series Printer Full Specification
Standard Features Print methods: direct-thermal or thermal-transfer (optional)
  Construction: metal frame with metal media cover
  Bi-fold media door with large clear window
  Side-loading supplies path for simplified media and ribbon loading
  Element Energy Equalizer™ (E3™) for superior print quality
  Bi-color LEDs for quick printer status
  Icon-based LCD multilingual graphical user interface and full function keypad
  USB 2.0 and RS-232 serial ports
  Energy Star-compliant
Printer Specifications Resolution
  203 dpi/8 dots per mm
  300 dpi/12 dots per mm (optional)
  Memory
  Standard: 128 MB flash (58 MB user-available), 128 MB DRAM
  Print Width
  4.09”/104 mm
  Print Speed
  6”/152 mm per second
  Media Sensors
  Transmissive and reflective sensors
  Media Characteristics
  Maximum label and liner width: 4.5”/114 mm
  Maximum non-continuous label length: 39”/991 mm
  Media Width
  0.75”/19.4 mm to 4.50”/114 mm
  Print Length
  203dpi: 157”/3,988 mm
  300dpi: 73”/1,854 mm
  Maximum Media Roll Size
  8.0”/203 mm O.D on a 3.0”/76 mm I.D. core
  6.0”/152 mm O.D. on a 1.0”/25 mm I.D. core
  Media Thickness
  0.003”/0.076 mm to 0.010”/0.25 mm
  Media Types
  Continuous, die-cut, notch, black mark
Ribbon Characteristics (Thermal-transfer option only)
  Outside Diameter
  3.2”/81.3 mm on a 1.0”/25 mm I.D. core (ZT230)
  Standard Length
  450 m/1,476’
  Ratio
  3:1 media-roll-to-ribbon ratio for ZT230
  Width
  1.57”/40 mm to 4.33”/110 mm
  Ribbon Setup
  Ribbon wound ink-side out, core to core
Operating Characteristics Environmental
  Operating Temperature: 40° F/5° C to 105° F/ 40° C (Thermal Transfer) 32° F/0° C to 105° F/ 40° C (Direct Thermal)
  Storage/Transport Environment:-40° F/-40° C to 140° F/60° C
  Operating humidity: 20% to 85% non-condensing
  Storage humidity: 5% to 85% non-condensing
  Electrical
  Universal auto-ranging (PFC-compliant) power supply 100-240 VAC; 47-63 Hz
  Energy Star-compliant
  Agency Approvals
  IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
  cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S Mark, CCC, GOST-R, KCC, BSMI, UkrSepro
Physical Characteristics ZT230 Closed
  Width: 9.5”/242 mm
  Height: 10.9”/277 mm
  Depth: 17”/432 mm
  Weight: 20 lbs/9.1 kg
Options and Accessories Communication
  Parallel (Bi-directional interface)
  Wireless: ZebraNet® Printer Server – supports 802.11 a/b/g/n networks via an internally integrated option that enables the use of Webview and Alert features
  Media Handling
  Rewind: internally rewinds a full roll of printed labels on 76mm (3”) core, or peels and rewinds liner (Factory installed only)
  Peel: Front mount, passive peel option
  Peel: Liner take-up option – additional full roll liner take-up spindle accommodates standard printer base
  Cutter: Front mount guillotine cutter and catch tray
  25.4mm (1”) I.D. Core media supply hanger
  Ink-side in ribbon supply spindle
  RFID
  Supports tags compatible with UHF EPC Gen 2 V1.2/ISO 18000-6C
  Integrated RFID system is user-upgradable in the field and available on both 104mm and 168mm models
  Adaptive Encoding Technology automatically selects optimum encode settings
  Keyboard Display Unit
  Supports KDU Plus™ and ZKDU: Enter variable data and retrieve stored forms for standalone applications
Link-OS Solutions Software Tools
  Document Design: Quickly design a customized print solution using your business data and Zebra's intuitive, plug-and-print design tools.
  Device Integration: Zebra offers apps and products designed to help you integrate Zebra devices into your existing systems.
  Device Management: Manage your print operations locally and globally with Zebra's suite of device management tools.
  Developer Tools: Provides you the tools you need to create your own apps, including documentation, source code, programming languages, templates and more.
Firmware Resident ZPL, ZPL II® and EPL programming languages, selectable through software or front panel.
  XML-enabled Printing — allows XML communications for barcode label printing.
Barcode Symbologies Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
  2-Dimensional Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec
Fonts and Graphics 16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts
  Asian and other international scalable and smooth bitmapped fonts
  Unicode: For multi-language printing
  Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats
  IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control
  Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0

* Specifications subject to change without notice.
